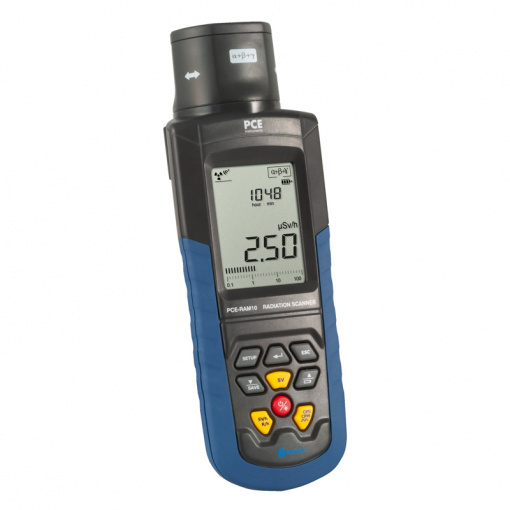

The Environmental Tester PCE-RAM 10 was developed to detect α-, β-, γ- and x- radiation. The Environmental Tester PCE-RAM 10 provides many features including a large, high-resolution LCD display with background lights and many indicators. The Environmental Tester PCE-RAM 10 has an internal data storage for up to 2000 data sets, which are saved either manually or automatically. Furthermore the Environmental Tester PCE-RAM 10 is equipped with a Bluetooth interface to transfer the measured data in real-time to a computer.
With the software that is included in the delivery, the data can then be further processed and reviewed. The Environmental Tester PCE-RAM 10 stands out with its high accuracy and practical design. The Environmental Tester can be applied in the pharmaceutical industry, laboratories, power plants, quarries, the emergency services, metal industries, petroleum reservoirs, environmental protection etc.
– High measuring accuracy
– Internal data storage for 2000 values
– Bluetooth interface
– Software for data processing
Types of radiation | α-, β-, γ- and x- radiation |
Measurement ranges | Radiation dose rate: 0.01 … 1000 μSv / h Pulse dose rate: 0 … 30,000 cpm, 0 … 5000 cps Radiation dose accumulation: 0.001 … μSv … 9.999 Sv Pulse dose accumulation: 0 … 9,999 |
Sensitivity | 108 pulses or 1000 cpm / mR / hr in Cobalt-60 irradiated environment with current of 1 μSv / h Alpha rays: from 4 MeV Beta rays: from 0.2 MeV Gamma rays: from 0.02 MeV X-rays: from 0.02 MeV |
Accuracy | <10% (less than 500 μSv / hr) <20% (less than 600 μSv / hr) |
Radiation selection | Combination of α-, β-, γ- and X-rays |
Sensor | Halogen compensation accumulator |
Output port | Bluetooth |
Average process time | Manual or automatic, adjustable between 2 … 12 seconds |
Display | Digital LCD display, with bar graph display |
Alarm function | Acoustic alarm for manually selected value |
Normal radiation value of natural environment | Less than 0 … 0.2 μSv / h |
Internal data storage | Automatic memory for <2000 measured values |
Software | Data transmission in real-time, analysis and recording |
Operation temperature | 0 … +50°C / 0 … 122°F |
Power supply | 4 x 1.5V AA Batteries |
Dimensions | 200 x 70 x 45 mm / 7.9 x 2.8 x 1.8 in |
Weight | 206 g / < 1 lb |
