Robust Environmental Meter for fixed installation / various output signals / �

for wind warning systems, building services and building automation

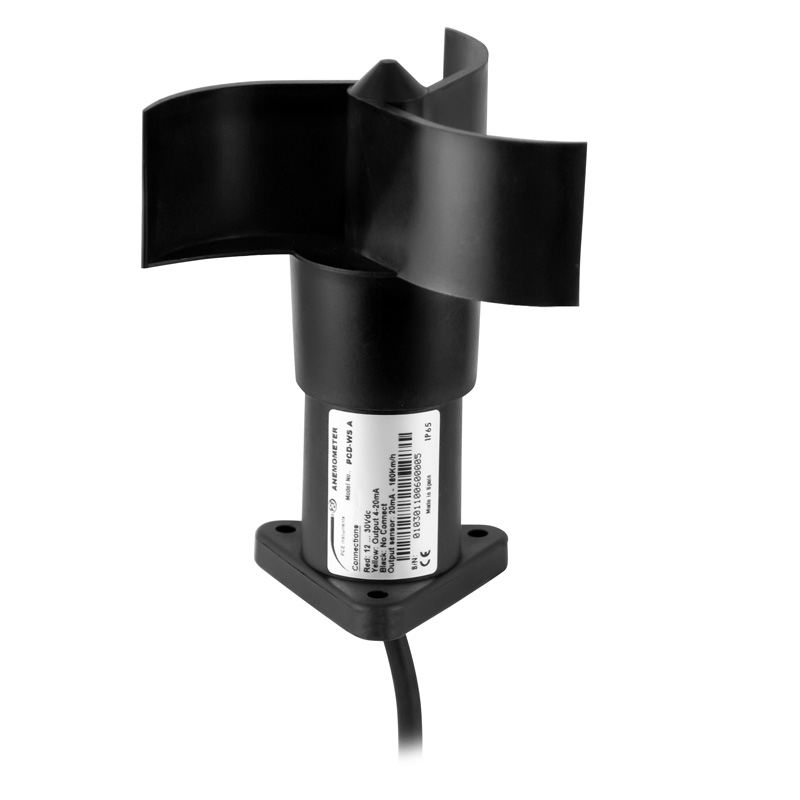

The Environmental Meter impresses with its compact design and various output signals. The Environmental Meter can be used for applications in warning technology, building automation and home technology. Depending on the Environmental Meter, a 4 … 20 mA, 0 … 10 V, Modbus or pulse output is available. The Environmental Meter is designed as a star, so that operation independent of the wind direction is guaranteed.�

The Environmental Meter is made of robust plastic and is therefore resistant to rust and corrosion. The Environmental Meter is also protected to IP65. The design of the Environmental Meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 … 164.04 ft/s, 0.8 … 50 m / s. The Environmental Meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Environmental Meter is optionally available.�

– Robust PA plastic housing

– IP 65 protection�

– mA, V, pulse or Modbus output

– Long lifetime

– Direct measurement of wind speed

– Measurement from 2.62 ft/s, 0.8 m / s

รีวิว

ยังไม่มีบทวิจารณ์

เฉพาะลูกค้าที่เข้าสู่ระบบ และเคยซื้อสินค้าชิ้นนี้แล้วเท่านั้น ที่เขียนบทวิจารณ์ได้

Measuring range	2.62 … 164.04 ft/s, 0.8 m / s … 50 m / s
Measurement from	≤2.62 ft/s, 0.8 m / s
Output	0 … 10 V
Accuracy	<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
	> 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage	12 … 30 V DC
Operating temperature range	-4 … +185 ° F, -20 … +80 ° C at ≤95% rel. humidity
Maximum wind speed �	180.45 ft/s, 123 mph, 55 m / s
Electrical connection	65 ft, 20 m connection cable
Protection class	IP65
