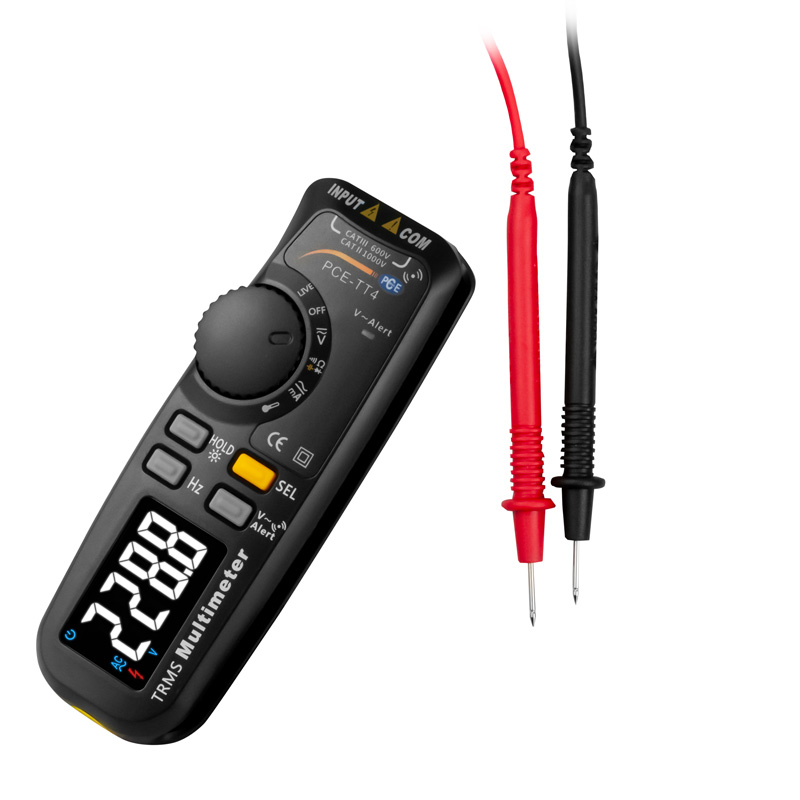

Electrical Tester PCE-TT 4

The digital multimeter is a measuring device for fast and precise measurement. Thanks to its extensive measuring function, the digital multimeter already covers a wide range of electrical measurements. For example, the digital multimeter can be used for voltage measurements up to 1000V AC / DC, resistance measurement, diode testing, current measurements up to 400-mA and temperature measurements. With this digital multimeter measurements can be made directly after switching on.

The special feature of this digital multimeter is the L-conductor determination function. In this function, the L and N conductors can be distinguished from, for example, sockets with the digital multimeter. Only one measuring lead is needed for the digital multimeter. Once the L-wire has been broken, “LIVE” will be displayed on the Digital Multimeter. Another special feature of the digital multimeter is the cable finder function. With this function, live cables can be detected with the digital multimeter.

– Fast L-conductor determination
– Small and handy for quick use
– Many extensive measuring functions
– Backlit LC display
– Automatic shutdown
– Cable identification of live cables

Voltage measurement DC
measuring range	Resolution	Accuracy
6V	1 mV	± (0.5% ± 3 Dgt.)
60V	10 mV	± (0.5% ± 3 Dgt.)
600V	100 mV	± (0.5% ± 3 Dgt.)
1000V	1V	± (0.5% ± 3 Dgt.)
Input resistance	10 MΩ
Maximum input voltage	1000V DC, 750V AC RMS
Voltage measurement AC
measuring range	Resolution    �	Accuracy
6V	1 mV	± (0.8% ± 3 Dgt.)
60V	10 mV	± (0.8% ± 3 Dgt.)
600V	100 mV	± (0.8% ± 10 Dgt.)
1000V	1V	± (0.8% ± 10 Dgt.)
Input resistance	10 MΩ
Maximum input voltage	1000V DC, 750V AC RMS
True RMS frequency range	45 … 1000 Hz
Resistance
measuring range	Resolution	Accuracy
600	0.1	± (0.8% ± 3 Dgt.)
6 k	1	± (0.8% ± 3 Dgt.)
60 k	10	± (0.8% ± 3 Dgt.)
600 k	100	± (0.8% ± 3 Dgt.)
6 m	1 k	± (0.8% ± 3 Dgt.)
60 m	10 k	± (1.2% ± 30 Dgt.)
Overvoltage protection
Measuring range
600V AC / DC
Measuring range	Resolution
Diodes
0 … 3.3V	0.001V	Displays the diode forward voltage
Overvoltage protection
Measuring range
600V AC / DC
Continuity test
Measuring range	Resolution	Accuracy
50	0,1Ω	Beep at < 50 Ω
Measuring function
Capacity
Measuring range	Resolution	Accuracy
6 nF	0.001 nF	± (4% ± 10 Dgt.)
60 nF	0.01 nF	± (4% ± 5 Dgt.)
600 nF	0.1 nF	± (4% ± 5 Dgt.)
6 μF	1 nF	± (4% ± 5 Dgt.)
60 μF	10 nF	± (4% ± 5 Dgt.)
600 μF	100 nF	± (4% ± 5 Dgt.)
6 mF	1 μF	± (4% ± 5 Dgt.)
Overvoltage protection
Measuring range
600V AC / DC
Measuring function
Current measurement DC
Measuring range	resolution	accuracy
60-mA	0.01-mA	± (0.8% ± 3 Dgt.)
200-mA	0.1-mA	± (0.8% ± 3 Dgt.)
Maximum input current
Measuring range
200-mA AC / DC RMS
Current measurement in a frequency range between 40 … 1 kHz True-Rms
Measuring function
Temperature measurement
Measuring range	Resolution	Accuracy
-20 … 500°C	1°C	± (2% ± 2 Dgt.)
-4 … 932°F	2°F	± (2% ± 2 Dgt.)
Overvoltage protection
Measuring range
600V AC / DC
Other specifications
Power supply battery	2 x 1.5V AA
Storage conditions	-10 … 50°C / 14 … 122°F, < 75% rh
Dimensions	140 x 50 x 30 mm / 5.5 x 2 x 1.2 in
Weight	About 119 g / < 1 lb
