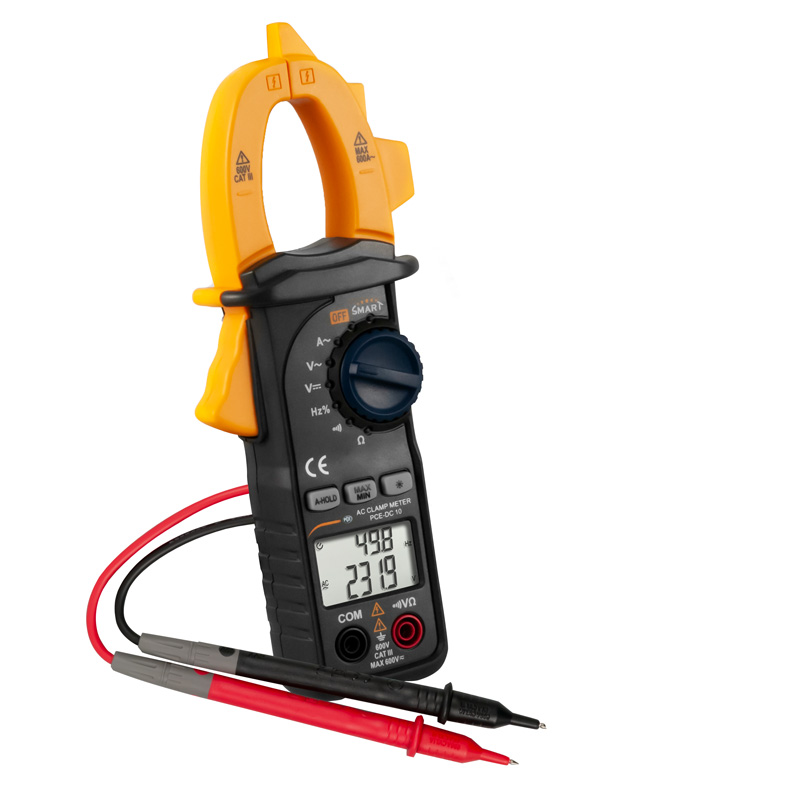

Electrical Tester PCE-DC 10

The digital multimeter is an ideal measuring device for the fast measurement of currents and voltages. To perform current measurements, a digital multimeter must be connected in series to the load. With this digital multimeter, current measurements directly on the supply line can be performed inductively without disconnecting them to switch on a digital multimeter. Thanks to this inductive current measurement, the risk of electric shock is drastically reduced because the operator has no direct contact with the supply line thanks to the digital multimeter.

In addition to current measurement of up to 600 A AC, the digital multimeter can also measure voltages up to 600V AC / DC, resistors, capacitances and the voltage network frequencies. Another special feature of the digital multimeter is the “SMART” function. With this function the digital multimeter sets the measuring function itself. Thus, the digital multimeter is also used in schools, training centers or other educational institutions.

– Current measurement up to 600 AAC
– Maximum forceps opening 26 mm
– Voltage measurement up to 600V AC / DC
– Three measurements per second
– “SMART” function facilitates operation
– Backlit LCD display

AC power
measuring range	Resolution	Accuracy
2 A	0.01A	± (2.5% + 8 digits)
20 A	0.01A	± (2.5% + 8 digits)
200 A	0.1 A	± (2.5% + 8 digits)
600 A	1 A	± (3.0% + 10 digits)
Frequency range: .45 … 65 Hz
The freqeuence is only displayed from a current of 0.2A.
maximum input current: up to 600 A for no more than 60 seconds.
Accuracy refers to RMS sine waves.
AC voltage
measuring range	Resolution	Accuracy
6V	0.01V	± (0.8% + 5 digits)
60V	0.1V
600V	1 V
Input impedance: 10 MΩ
Overvoltage protection 600V AC / DC rms
Smallest measurable voltage: 1V AC / DC
Frequency range: 45 … 65 Hz
Accuracy refers to RMS sine waves
If a current is detected during the voltage measurement, “Err” appears on the display
DC voltage
measuring range	Resolution	Accuracy
6V	0.01V	± (0.5% + 3 digits)
60V	0.1V
600V	1 V
Input impedance: 10 MΩ
Overvoltage protection 600V AC / DC rms
Smallest measurable voltage: 1V AC / DC
Resistance
measuring range	Resolution	Accuracy
2 kΩ	0.001 kΩ	± (0.8% + 3 digits)
20 kΩ	0.01 kΩ	± (0.8% + 3 digits)
200 kΩ	0.1 kΩ	± (0.8% + 3 digits)
2 MΩ	0.001 MΩ	± (0.8% + 3 digits)
10 MΩ	0.01 MΩ	± (1% + 5 digits)
Measuring voltage in open circuit: approx. 0.4V
Overvoltage protection: 250V AC / DC rms
Continuity test
Beep at < 40 Ω
Measuring voltage in open circuit: approx. 0.4V
Overvoltage protection: 250V AC / DC rms
Frequency
measuring range	Resolution	Accuracy
60 Hz	0.1 Hz	± (1% + 5 digits)
600 Hz	1 Hz
3 kHz	10 Hz
Total measuring range: 40 … 3 kHz
Minimum voltage: > 1 AC RMS (The measurement frequency will increase with the voltage)
Overvoltage protection: 600V AC / DC rms
Duty cycle
measuring range	Resolution	Accuracy
10 … 90%	1%	± 2%
Maximum current clamp Opening	26 mm
Insulation	CAT III 600V
Measuring rate	About 3 measurements per second
Display	3 5/6 digit LCD
Display area	5999, 1999 for resistance measurement
Measurement outside the Measuring range	“OL” display
Automatic shutdown	After 15 minutes, can be deactivated
Coefficients	0.1 x accuracy x °C / °F*
Power supply	3 x 1.5V AAA batteries
Operating conditions	0 … 40°C / 32 … 104°F, < 80% rh
Storage conditions	-10 … 60°C / 14 … 140°F, < 70% rh (without batteries)
Maximum working height	2000 m / 6561 ft
Dimensions	204 x 78 x 43 mm / 8 x 3.1 x 1.7 in
Weight	About 195 g / < 1 lb
Accuracies are given at ambient conditions of 18 … 28°C, 65 … 83°F. *The temperature is the difference between the temperature of the operating conditions and the current ambient temperature.
Example:
Is the current ambient temperature greater than the temperature of the operating conditions
(50°C / 122°F  (current ambient temperature)) – (40°C / 104°F (operating temperature)) = 10°C / 50°F
Is the current ambient temperature less than the temperature of the operating conditions
(0°C / 32°F (operating temperature)) – (-5°C / °F (current ambient temperature)) = 5°C / 41°F
