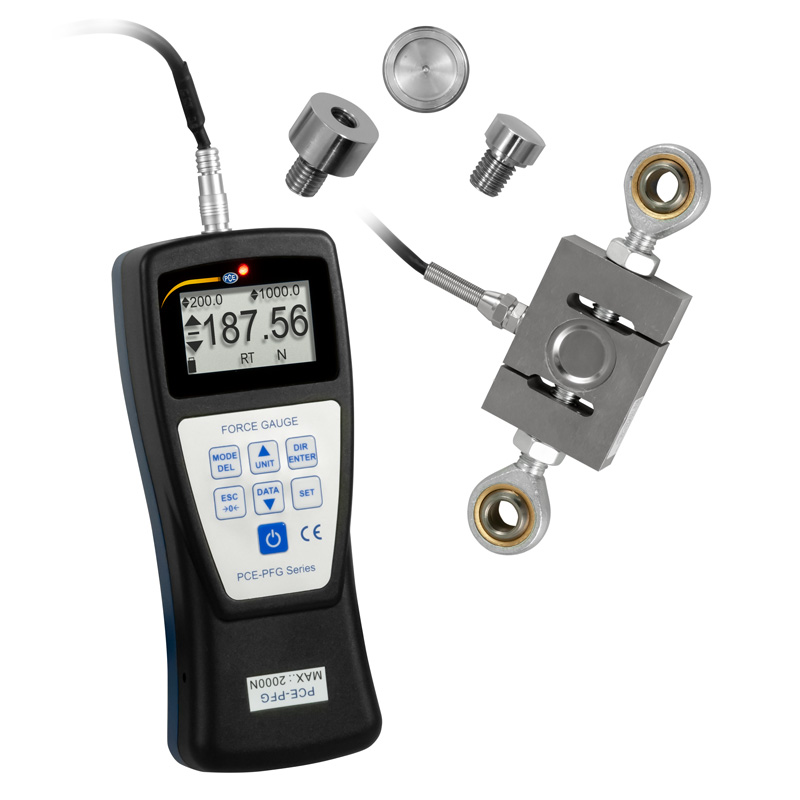

with internal S load cell, graphic display, memory and USB-B interface
The PCE-PFG dynamometer is a handy, digital measuring device for measuring tensile and compressive forces. The force measuring device offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (Average) and automatic measurement storage of up to 100 measurements.
The measurement data and a statistical evaluation of the data stored in the force measuring device (MIN / MAX / average) are shown on the graphic display and can be transferred to a PC via the USB interface. In addition, the force measuring device offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow / green / red) and switching contacts.The force measuring device can be operated continuously for up to 36 hours on a single charge (without background lighting) and is a reliable partner as a mobile force measuring device.
– 4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement)
– Internal memory for up to 100 measured values
– Statistics evaluation (MIN / MAX / average)
– rotatable display
– Alarm function with multi-colored LED (yellow / green / red) and switching contact output 2.85 V.
– USB B interface
– Battery life up to 36 hours
Measuring range | 0 … 2000 N |
Resolution | 0.5 N |
Accuracy | ±0.3 % of the measuring range |
Measurement units | N, kgF, lbF |
Display | 1.8″ graphic display |
Alarm modes | Below, Inside, Outside |
Sampling rate | 500 Hz |
Memory | 100 measurements |
Power supply | lithium battery 3.7 V / 1500 mAh |
Battery life | up to 36 hours |
Power supply / USB charging adapter | 5 V / 1 A |
Outputs | interface: USB B Switching output / alarm modes: MD6 with 2.85 V if active |
Protection class | IP 54 |
Operating and storage conditions | 5 … 45 °C 35 … 65 % r.H. not condensing |
Dimensions of load cell | L 52 mm / H 72 mm / W 19 mm / M12 thread / 490 g |
(see technical drawing) | |
Cable length of load cell | approx. 1.8 m |
Dimensions handset | 189 x 707 x 34 mm |
Weight handset | 240 g |
