PCE-CS 5000N is a digital battery-powered Dynamometer that displays measurement values in kilograms (kg) or pounds (lbs). The Dynamometer comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.
- Displays measurement values in kilograms (kg) or pounds (lbs)
- Comes factory calibrated (see accessories for optional ISO calibration)
- Includes hook, shackle and remote control
- Features zero, tare, hold, sum, power-saving automatic shutdown and timed backlighting functions
Maximum weighing capacity | 5000 kg / 11023 lbs ≈ 5 Tons |
Resolution | 1 kg / 2.2 lbs |
Measurement uncertainty | ± 4 kg / ± 8.8 lbs |
Tare range | 100 % full scale |
Zero range | 4 % full scale |
Settling time | ≥ 2 seconds |
Units of weight | kg / lbs |
Overload | 100 % full scale + 9 verification scale interval |
Limit load | 150 % |
Display | 2.2 cm x 1.1 cm / 0.87 in x 0.43 in HTN LCD with backlight |
Power supply | 3 x 1.5 V AAA batteries |
Operating conditions | -10° C … +40° C / +14° F … +104° F ≤ 90 % RH |
Weight (approx.) | 14.5 kg / 32 lbs |

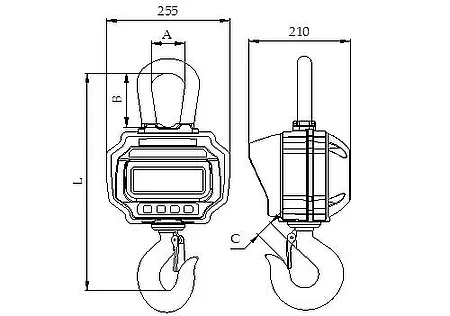

Dimensions | See diagram below |
A: 68 mm / 2.67 in B: 112 mm / 4.40 in C: 36 mm / 1.42 in L: 450 mm / 17.72 in |
