Zero, tare, sum, hold and gross-net weighing functions / Metric, imperial and freely adjustable units / 1000 kg or 2200 lbs ≈ 1 Ton weighing capacity

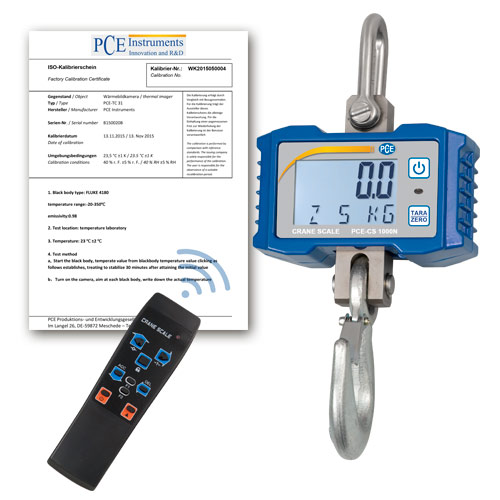

PCE-CS 1000N-ICA is a digital, electronic, battery-powered dynamometer that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale includes a hook / shackle, remote control and ISO calibration certificate.
The robust aluminum housing of this dynamometer allows weighing in even the harshest indoor industrial environments. The dynamometer is operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the dynamometer is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the dynamometer ‘s display can be adjusted to extend the operating time.
Other functions of the dynamometer are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the dynamometer , so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the dynamometer features a linear calibration to ensure high accuracy.
– Weighing capacity up to 1000 kg / 2200 lbs ≈ 1 Ton
– Measuring deviation of max. 1% possible
– Zero, sum and hold functions
– Gross/net weighing
– Full scale tare
– Displays measurements in kilograms (kg), pounds (lbs) and freely adjustable units
– LCD display with large, easy-to-read digits
– Battery operation up to 65 hours
– Compact dimensions
– Linear calibration possible
– Includes hook / shackle, remote control and ISO calibration certificate
Maximum weighing capacity | 1000 kg / 2200 lbs ≈ 1 Ton |
Resolution | 0.2 kg / 0.4 lb |
Tare range | 100% full scale |
Accuracy | ± 1% of the measuring range |
Minimum load | 10 kg / 23 lbs |
Measuring units | kg / lb |
Response time | Less than 1 second |
Safety load | 150% (do not exceed) |
Functions | Zero, tare, data hold, power-saving automatic shutdown and timed backlighting |
Display | LCD with backlight, 20 mm / 0.79 in. digit height |
Power supply | 3 x 1.5 V AA batteries (operating time up to 65 hours), 2 x AA batteries (remote) |
Operating conditions | -10° C … +40° C / +14° F … +104° F |
Overall dimensions: See table below |
|
L | 230 mm / 9.1 in |
A | 20 mm / 0.8 in |
B | 43 mm / 1.7 in |
C | 27 mm / 1.1 in |
Approx. weight | 1.4 kg / 3.1 lbs |
