Dynamometer 30g

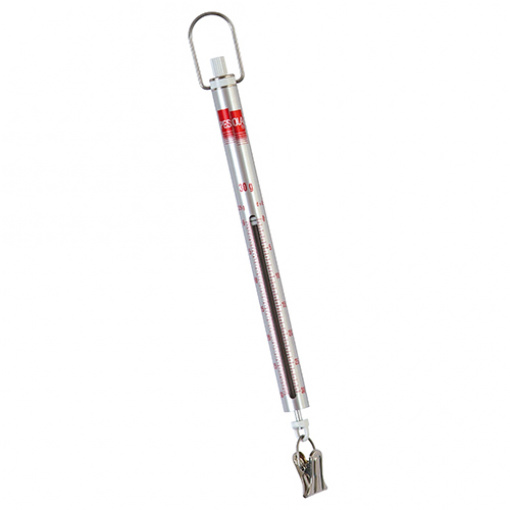

Micro-Linie 30 g Dynamometer
hanging suspension hook / resistant to corrosion / analogue scale reading

The 30 g Dynamometer is a vertical hanging suspension hook for traction force measurement. Ideal for use in colleges, this corrosion-resistant anodized aluminum analog scale features a fatigue-resistant internal spring and requires no batteries.



• Durable, corrosion-resistant anodized aluminum casing
• Precise graduation in high resolution
• Overload proof up to 1000 g
• Screw for adjustment of zero position and tare
• Suspension bow can be swiveled and rotated 360 °
• Measuring position: Vertical only



Technical specifications
Measuring range	30 g / 0.3 N / 0.07 lbs
Resolution	0.0025 N / 0.25 g / 0.009 oz
Accuracy	± 0.3 % of load
Tare range	≈ 20 % of capacity
Scale reading length	80 mm / 3.1 in
Length (unextended)	220 mm / 8.7 in
Length max. (extended)	300 mm / 11.8 in
Diameter	Ø 12.2 mm / Ø 0.48 in
