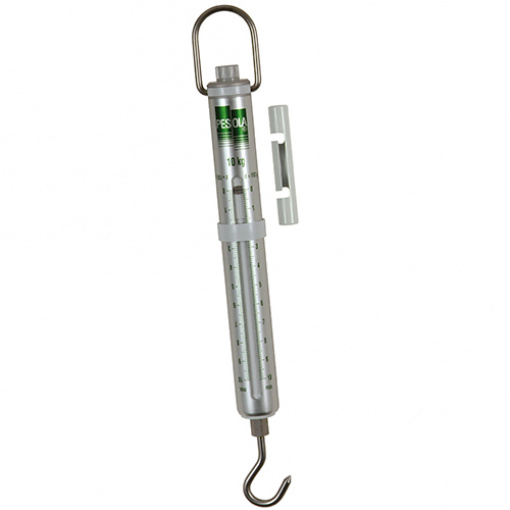

Dynamometer 10kg

Macro-Linie Spring Dynamometer
weighs up to 10 kg / resistant to corrosion / easy handling

The 10kg Dynamometer is suited for weighing all goods of up to 10 kg or 22 lbs. The Dynamometer as a high resolution and a maximum deviation of ±0.3 % at full load – unique for this kind of force meter. Due to its type of construction, the Dynamometer doesn’t need any batteries and is also suited for demonstration purposes in schools or universities. Furthermore, the Dynamometer can be used in the machine industry for tensile measurements of any kind. Many customers rely on the Dynamometer for its quality and precision. The materials used in the Dynamometer are resistant to corrosion and thereby assure a long life span.



• Analogue scale for reading
• Resistant to corrosion
• No batteries needed
• Easy handling
• Tare function



Technical specifications
Measuring range	100 N / 10 kg / 22 lbs
Resolution	1 N / 100 g / 0.22 lbs
Accuracy	± 0.3 %
Tare range	~ 20 %
Scale reading length	140 mm / 5.5 in
Length (unextended)	370 mm / 14.6 in
Length max. (extended)	510 mm / 20.1 in
Diameter	Ø 32 mm / Ø 1.3 in
