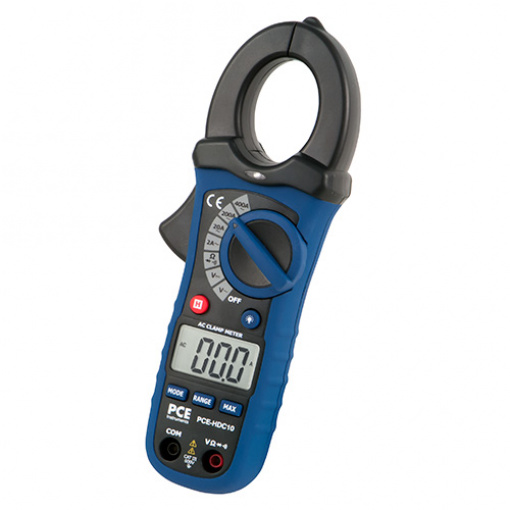

Clamp-on Digital Multimeter PCE-10 HDC
Clamp-on digital multimeter for up to 400 A AC / voltmeter / one-handed operation / robust housing / Multimeter function

The clamp-on ammeter PCE-HDC 10 can measure currents, voltages and resistances. Furthermore the clamp-on ammeter has got a continuity tester, and a diode tester. The 4-digit backlit display gives the possibility to read the measured value on the clip-on ammeter in the darkness. Another feature of this device is a peak / Max or Hold function. This helps to keep the highest measured value or the value that has just been displayed, on the screen of the clamp-on ammeter. Its compact design allows one-handed operation. The measurement selector and the buttons are easily accessible with the thumb. This makes it perfect for mobile use.

If you have any questions, please use our contact form or call us. Our technicians and engineers will be glad to give any kind of assistance concerning the clam-on ammeter or all the other products from the section control systems, laboratory technology, measuring instruments or weighing equipment of the PCE Instruments.

– Currents up to 400 A AC
– Voltages up to 600 V AC / DC
– Auto-Range
– Max- Hold function
– Backlit LCD
– Automatic shutdown

Specifications
Function	Measuring range	Resolution	Accuracy
AC current (50/60 Hz	2 A 20 A 200 A 400 A	0,001 A 0,01 A 0,1 A 0,1 A	± 2,5 % + 10 Digit ± 2,5 % + 4 Digit ± 3 % + 4 Digit ± 0,8 % + 2 Digit
DC voltage	200 mV 2 V 20 V 200 V 600 V	0,1 mV 0,001 V 0,01 V 0,1V 0,1V	± 0,8 % + 2 Digit ± 1,5 % + 2 Digit ± 1,5 % + 2 Digit ± 1,5 % + 2 Digit ± 2 % + 2 Digit
AC voltage	200 mV 2 V 20 V 200 V 600 V	0,1 mV 0,001 V 0,01 V 0,1V 0,1V	± 1,5 % + 35 Digit ± 1,8 % + 8 Digit ± 1,8 % + 8 Digit ± 1,8 % + 8 Digit ± 1 % + 4 Digit
Resistance	200 Ω 2 kΩ 20 kΩ 200 kΩ 2 MΩ 20 MΩ	0,1 Ω 0,001 kΩ 0,01 kΩ 0,1 kΩ 0,001 MΩ 0,01 MΩ	± 1 % + 4 Digit ± 1,5 % + 2 Digit ± 1,5 % + 2 Digit ± 1,5 % + 2 Digit ± 2,5 % + 3 Digit ± 3,4 % + 5 Digit
General specifications
Measuring rate		2 / s
Input resistance		10 MΩ
Display		4-digit LCD
Operating Conditions		5 … 40 ° C / 80 % RH
Storage conditions		-20 … 60 ° C / 80 % RH
Power supply		9 V block battery
Automatic shutdown		after about 15 minutes
Dimensions		197 x 70 x 40 mm
Weight		approx. 183 g
