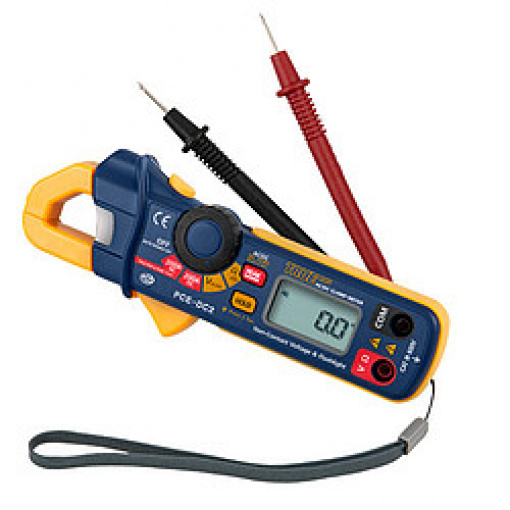

The PCE-DC1 Digital Multimeter has been designed to detect, indirectly, AC/DC current and ohms. The clamp has white LEDs integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this device allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it allows makes it easier to detect the location of cuts in power lines.
– LCD with 3 2/3 positions, backlit, clamp for continuous current
– Measures AC/DC current, AC voltage and ohms
– Memory function, zero reset for the DCA, test voltage without contact
– Illumination of the point of measurement
– Automatic range selection
– Auto shut-off
– Aperture of the clamp: 18 mm / .7 in
AC current (50/60 Hz) real effective value |
Sector / accuracy 200 AAC / ±2.5% + 8 digits |
DC current | Sector / accuracy 200 ADC / ±2.0% + 5 digits |
Testing AC voltage (50/60Hz) real effective value | 600 VAC ±(1.5% + 8 digits) |
Testing DC voltage | 600 VDC ±(1.5% + 2 digits) |
Ohms | 999.9 Ω ±(1.5% + 8 digits) |
Illumination of measurement point | White LEDs |
Diameter of the conductor | Maximum of 18 mm / 0.7 in |
Display | Backlit LCD with 3 2/3 positions |
Power | 2 AAA batteries |
Enclosure | PVC |
Dimensions | 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in |
Weight | 175 g / < 1 lb |
Standards | EN61010-1; CAT II / 600V EN61010-2-032; CAT III / 300V |
