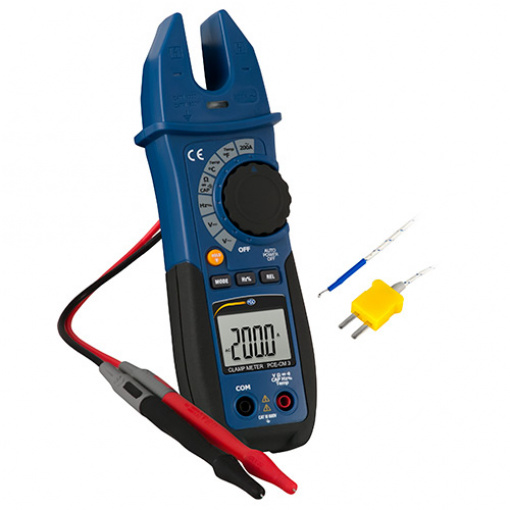

Digital Multimeter PCE-CM 3

The fork current clamp PCE-CM 3 is used for quick and easy AC measurements. For current measurement, the fork current clamp is placed over the current-carrying conductor. The PCE-CM 3 Fork Clamp is particularly suitable for the measurement of AC in distributions and wherever circuits must not be interrupted. The current measuring range extends from 0 … 200 A. In addition to the current measurement, the fork current clamp can be used to measure DC and AC voltages up to 600V, resistances, capacitances and even temperatures. The measured values ​​are displayed on the illuminated display of the fork current clamp.

The compact dimensions and the low weight distinguish this current clamp as well as the robust housing. This makes the PCE-CM 3 fork clamps the perfect companion for installers and service technicians.

– Digital Multimeters up to 200 A
– Compact dimensions
– Robust plastic housing
– Multimeter functions
– Battery operation
– Backlit LCD

DC
Measuring range	Resolution	Accuracy
4V DC	1 mV	± (1.2% of measured value + 2 digits)
40V DC	10 mV	± (1.5% ofmeasured value + 2 digits)
400V DC	100 mV	± (1.5% ofmeasured value + 2 digits)
600V DC	1V	± (2% ofmeasured value + 2 digits)
Input impedance	10 MΩ
Overvoltage protection	600V DC
	600V AC RMS
AC
Measuring range	Resolution	Accuracy
4V AC	1 mV	± (1.5% ofmeasured value + 5 digits)
40V AC	10 mV	± (1.5% ofmeasured value + 2 digits)
400V AC	100 mV	± (1.5% ofmeasured value + 2 digits)
600V AC	1 V	± (2% ofmeasured value + 2 digits)
Input impedance	10 MΩ
Overvoltage protection	600V DC
	600V AC RMS
Frequency range	50 … 400 Hz
Alternating current
Measuring range	Resolution	Accuracy
200 A AC	100-mA	± (3.0% ofmeasured value + 5 digits)
Overload protection	200 A AC
Frequency range	50 … 60 Hz
Resistance
Measuring range	Resolution	Accuracy
400 Ω	0.1 Ω	± (1% ofmeasured value + 4 digits)
4 kΩ	1 Ω	± (1.5% ofmeasured value + 4 digits)
40 kΩ	10 Ω	± (1.5% ofmeasured value + 4 digits)
400 kΩ	100 Ω	± (1.5% ofmeasured value + 4 digits)
4 MΩ	1 kΩ	± (2.5% ofmeasured value + 4 digits)
40 MΩ	10 kΩ	± (3.5% ofmeasured value + 4 digits)
Overvoltage protection	250V DC
	250 AC RMS
Connection thermocouple	Type K connection with adapter
Capacity
Measuring range	Resolution	Accuracy
4 nF	0.1 nF	± (5% ofmeasured value + 20 digits)
40 nF	1 nF	± (3% ofmeasured value + 5 digits)
400 nF	10 nF	± (3% ofmeasured value + 5 digits)
4 μF	100 nF	± (3% ofmeasured value + 5 digits)
40 μF	1 μF	± (3% ofmeasured value + 5 digits)
100 μF	10 μF	± (3% ofmeasured value + 10 digits)
Overvoltage protection	250V DC
	250 AC RMS
Check feature	Test	Display
Diode test	Test current: 0.5-mA Reverse Voltage: 1.5V	Forward voltage of the diode
Continuity test	Open circuit Voltage 0.5V	Noise when resistance <50 Ω
Overvoltage protection	250V DC 250 AC RMS
General technical specifications
Jaw Capacity	About 17 mm / .7 in
Display	4000 digit LCD with backlight
Continuity test	Noise when resistance <50 Ω
Test current	About 0.5-mA
Open circuit voltage	<2V DC
Battery indicator	Battery icon when battery voltage low
Display overrange	OL appears in the display
Refresh rate display	3 Hz
Temperature sensor	Thermocouple type K
Input impedance	10 MΩ
Operating conditions	5 … 40°C / 41 … 104°F, 80% rh non-condensing
Storage conditions	-20 … 60°C / -4 … 140°F, 80% rh non-condensing
Operating altitude	<2000 m
Power supply	2 x 1.5V AAA battery
Automatic shutdown	30 minutes
Security conditions	IEC1010-1 (2001) CAT II 1000V CAT III 600V
Pollution degree	2
