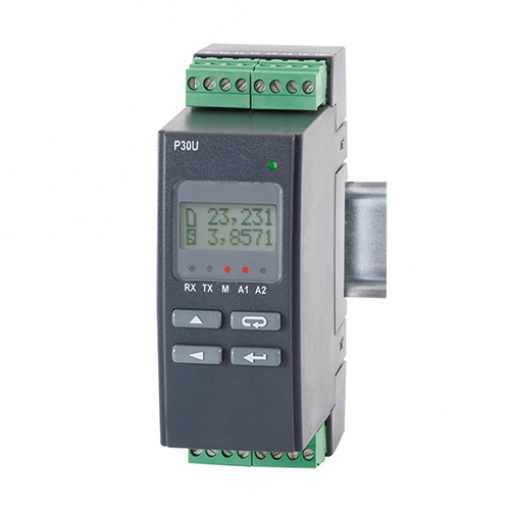

Voltage Current Signal Converter Data Logger PCE-P30H

Name: Voltage Current Signal Converter Data Logger PCE-P30H
SKU: 11451
Availability: BackOrder

PCE-P30H

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Data Logger / Data Logging Instrument

รายละเอียดเพิ่มเติม

Transmitter with memory / DC input for voltage and current / 4 … 20 mA or 0 … 10 V output / DIN rail mounting / Alarm relay / LC display / Modbus RTU

The PCE-P30H Voltage Current Signal Converter Data Logger is used for direct voltages and currents between 12 V … 1000 V DC or currents up to 150 A via separate shunts. The transmitter can convert the measured signals into an analog standard signal. Furthermore, the measured values can be distributed to process control systems via Modbus RTU. The transmitter can optionally be equipped with an SD card or Ethernet. The PCEP30H transmitter is equipped with 2 relays for user alarm.

– SD card memory and internal memory
– DC input for voltage and current via shunts (shunt resistor)
– Output galvanically isolated
– Alarm relay
– Modbus interface
– LC display
– 35 mm mounting rails

Technical Specification
Input	Measuring range	Nominal measuring range	Accuracy class
DC voltage	12 V	-4 … 12 V	0.2
	48 V	-4 … 48 V
	100 V	-4 … 100 V
	250 V	-4 … 250 V
	600 V With additional resistor D5 (see options)	-4 … 600 V	0.2 + accuracy of additional resistor
	1000 V With additional resistor D5 (see options)	-4 … 1000 V
DC power Via shunt		Shunt: -150 … 150 mV	0.2 + accuracy shunt
Interfaces		RS485 (master / slave)
Analog output (galvanically isolated)		4 … 20 mA (max. 500 Ω) 0 … 10 V (< 500 Ohm)
Alarm relay		normally open contact max. 5 A / 30 V DC / 250 V AC
Sensor supply		24 V DC / 30 mA
Power consumption		5 VA
Dimensions		120 x 45 x 100 mm
Display		LCD 2 x 8 characters
Mounting type		35 mm DIN rail
Internal memory		534,336 data records
Max. memory card size		2 GB (FAT / FAT32) (136,512,000 data records)
Supply voltage		85 … 253 V AC / DC 20 … 40 V AC / DC
Ambient conditions		-25 … 55 °C / 25 … 95 % r.H

Voltage Current Signal Converter Data Logger PCE-P30H
