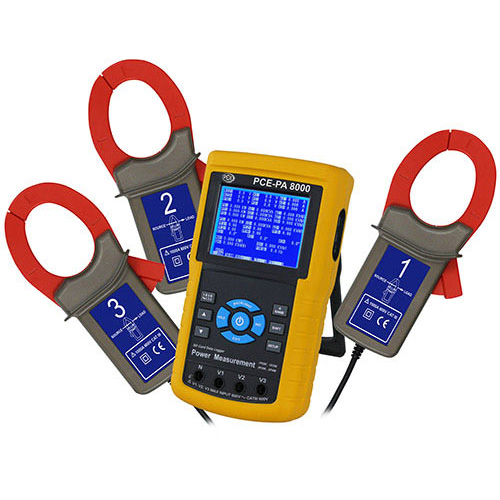

PCE-PA 8000 Three Phase Power Data Logger
real time measurement with registration in the SD card / Integrated timer and calendar to record data / Active, apparent, and reactive power
The PCE-PA 8000 Three Phase Power Data Logger is able to measure and record the power in both single-phase or three-phase circuits. With the PCE-PA 8000 Three Phase Power Data Logger you will be able to perform prolonged measurements. Measurement values are saved in xls format on the included SD card of our Three Phase Power Data Logger to be easily analyzed on the computer. Measurement sample rate can be set from 2 to 7200 seconds. The PCE-PA 8000 Three Phase Power Data Logger can also measure power and determine both power factor and phase angle. The clamps of the PCE-PA 8000 Three Phase Power Data Logger can be used for cables with a diameter of 50 mm / 2.0 in. The PCE-PA 8000 is the ideal tool to be used in power supply networks. Its 3.7 in / 94 mm display allows you to read all measured values for a quick analysis as well as providing a view of the current, voltage, and power.
– Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
– Measures effective real value of current and voltage
– Measures active, apparent, and reactive power
– Power Factor (PF), phase angle (Φ)
– Measures voltage up to 600 V
– Measures current up to 1200 A
– It meets the IEC 1010 and CAT III 600 V standards
– Integrated timer and calendar to record data
– Measured values are recorded in the included SD card
– Data is stored in Excel format for further study
– Data can be transferred to a PC through data cable
– Large 3.7 in / 94 mm LCD display
Technical Specifications | ||
Voltage (AC V) | ||
Measurement range | Resolution | Accuracy |
10 V … 600 V (phase to neutral) | 0.1 V | ±(0.5 % + 0.5 V) |
10 V … 600 V (phase to neutral) | ||
Current (AC A) | ||
Measurement range | Resolution | Accuracy |
20 A | 0.001 A (< 10 A) 0.01 A (≥ 10 A) | ±(0.5 % + 0.1 V) |
200 A | 0.01 A (< 100 A) 0.1 A (≥ 100 A) | ±(0.5 % + 0.5 A) |
1200 A | 0.1 A (< 1000 A) 1 A (≥ 1000 A) | ±(0.5 A + 5 A) |
Active power | ||
Measurement range | Resolution | Accuracy |
0 KW … 9.999 KW | 0.001 KW | ±(1 % + 0.008 KW) |
10 KW … 99.99 KW | 0.01 KW | ±(1 % + 0.008 KW) |
100 KW … 999.9 KW | 0.1 KW | ±(1 % + 0.8 KW) |
1 MW … 9.999 MW | 0.001 MW | ±(1 % + 0.008 MW) |
Apparent power | ||
Measurement range | Resolution | Accuracy |
0 KVA … 9.999 KVA | 0.001 KVA | ±(1 % + 0.008 KVA) |
10 KVA … 99.99 KVA | 0.01 KVA | ±(1 % + 0.08 KVA) |
100 KVA … 999.9 KVA | 0.1 KVA | ±(1 % + 0.8 KVA) |
1 MVA … 9.999 MVA | 0.001 MVA | ±(1 % + 0.008 MVA) |
Reactive power | ||
Measurement range | Resolution | Accuracy |
0 KVAR … 9.999 KVAR | 0.001 KVAR | ±(1 % + 0.008 KVAR) |
10 KVAR … 99.99 KVAR | 0.01 KVAR | ±(1 % + 0.08 KVAR) |
100 KVAR … 999.9 KVAR | 0.1 KVAR | ±(1 % + 0.8 KVAR) |
1 MVAR … 9.999 MVAR | 0.001 MVAR | ±(1 % + 0.008 MVAR) |
Active energy | ||
Measurement range | Resolution | Accuracy |
0 KWh … 9.999 KWh | 0.001 KWh | ±(1 % + 0.008 KWh) |
10 KWh … 99.99 KWh | 0.01 KWh | ±(1 % + 0.08 KWh) |
100 KWh … 999.9 KWh | 0.1 KWh | ±(1 % + 0.8 KWh) |
1 MWh… 9.999 MWh | 0.001 MWh | ±(1 % + 0.008 MWh) |
Apparent energy | ||
Measurement range | Resolution | Accuracy |
0 KVAh … 9.999 KVAh | 0.001 KVAh | ±(2 % + 0.008 KVAh) |
10 KVAh … 99.99 KVAh | 0.01 KVAh | ±(2 % + 0.08 KVAh) |
100 KVAh … 999.9 KVAh | 0.1 KVAh | ±(2 % + 0.8 KVAh) |
1 MVAh… 9.999 MVAh | 0.001 MVAh | ±(2 % + 0.008 MVAh) |
Reactive energy | ||
Measurement range | Resolution | Accuracy |
0 KVARh … 9.999 KVARh | 0.001 KVARh | ±(2 % + 0.008 KVARh) |
10 KVARh … 99.99 KVARh | 0.01 KVARh | ±(2 % + 0.08 KVARh) |
100 KVARh … 999.9 KVARh | 0.1 KVARh | ±(2 % + 0.8 KVARh) |
1 MVARh… 9.999 MVARh | 0.001 MVARh | ±(2 % + 0.008 MVARh) |
Power factor | ||
Measurement range | Resolution | Accuracy |
0 … 1 | 0.01 | ±0.04 |
Phase angle | ||
Measurement range | Resolution | Accuracy |
-180º … 180º | 0.1º | ±1º |
Frequency | ||
Measurement range | Resolution | Accuracy |
45 Hz … 65 Hz | 0.1 Hz | 0.1 Hz |
General specifications | ||
Display | 3.7 in / 94.0 mm LCD (320 x 240 pixels) with LED backlight | |
Electrical properties | AC V, AC A, active power, apparent power, power factor, phase angle, mains frequency | |
Voltage ranges | 10 V … 600 V AC, automatic range selection | |
Security / Standards | IEC1010CAT III 600V | |
AC V input resistance | 10 MΩ | |
Operation frequency of current clamps | 40 Hz … 1 kHz | |
Tested operation frequency of current clamps | 45 Hz … 65 Hz | |
Overload protection | AC V / 720 V rms | |
AC A | 1300 A with current clips | |
Memory | SD card up to 16 GB | |
Measurement display rate | 1 second | |
Data logger | SD | |
Measurement sample rate | 2 seconds… 7200 seconds | |
Data output | USB or RS-232, depending on the connection cable | |
Operating temperature | 0º C … 50º C / 32° F … 122° F | |
Operating humidity | < 80 % H.r. | |
Power | 8 x 1.5 V AA batteries / mains component | |
Input current | Meter: 300 mA DC Clamp: 34 mA DC | |
Max. diameter | 50 mm / 1.9 in | |
Weight | Meter: 948 g / 33.4 oz (with batteries) Clip: 467 g / 16.4 oz (with cable) | |
Dimensions | Meter: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in | |
Clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in | ||
Jaw: 86 mm / 3.3 in (exterior) |
