DESCRIPTION

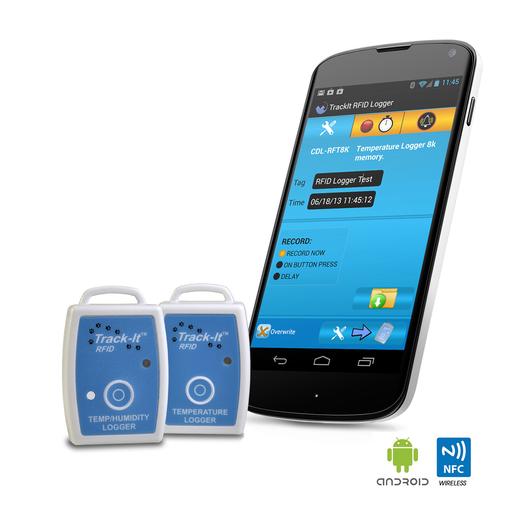

Track-It�RFID Data Loggers are battery-alone compact devices that record from 22.5 hours to 337.5 days of temperature or temperature and humidity data. The technology makes it ideally suited for use in supply chain monitoring applications. The compact water-resistant (IP65) enclosure contains an RFID antenna that allows the unit to be configured and data transferred wirelessly.

These loggers can be affixed to the inside of a shipping carton and scanned without opening the carton. This gives full access to data without sacrificing the integrity of your package contents. Use an Android device with Near-field communication (NFC) and the free Track-It�Android application to quickly scan a package to determine if there are any alarms. If alarms are present, the data can be quickly downloaded and viewed on your Android device or you can choose to email it directly from your device for immediate review at another location. Data can also be downloaded and reviewed using the optional RFID docking station and free Windows-based Track-It�Software. Purchase an optional high to extend the temperature range from 60°C [140°F] to 80°C [176°F]. The highly reliable design and excellent performance at a reasonable price this indispensable in many applications.

Typical Uses

Supply Chain Monitoring/Validation
Warehouse/Storage Facility Monitoring
Food/Pharmaceuticals
MKT/Dew Point Calculation
Hospitals/Pharmacies
HVAC/Building Monitoring
Laboratories/Research
Refrigeration/Heating
HACCP Monitoring
Agriculture
Computer/Communications Rooms
Perishables
Healthcare/Safety
Environmental Conditions
Weather Monitoring
Indoor Climate

FEATURES

Programmable start time (automatic or with button)
Programmable sample rate
Up to 8,000 data samples per recording session
Multiple alarm set-points
Compact size
Full-featured Android application included
Wireless data transfer with graphic review and configuration using your Android device
Powerful interactive Windows-based Track-It Software package included (requires optional USB RFID Reader)
Rugged IP65 enclosure (RFID Temp and Temp/Humid RHS)
1-year battery life (battery included)
High accuracy and repeatability
NIST Calibration available

SPECIFICATIONS

General

Record	Sample Rates: User-configured – 10 seconds, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 45, 60 minutes (22 hrs: 30 min. to 337.5 days) No. of Samples: 4000 or 8000 (depends on setup)
Record Trigger	Start “Now”, button press, or start after xxx hours: xx minutes
Record Mode	Instantaneous, max, min, average
LED	Indication of alarms and record status
Button	Record Start/Stop, Logger Status
Alarms	2 or 4 user-programmable high and low alarms
Communication	Passive RFID (wireless)
Software	Track-It™ Software – Set up the device, view data in tabular or graphic formats, summarize, show alarms, calculate MKT and Dew Point, export to Excel™ Android App – Set up the device, quick summary, view data in tabular or graphic format, show alarms, email data, and configurations
Battery	Included Coin Cell: Lithium CR2032 60°C Max, 1-year life Optional Coin Cell: Lithium BR2032 80°C Max, 6-month life
Dimensions	2.00” [50.80 mm] L x 1.32” [33.53 mm] W x 0.50” [12.70mm] H

MEASUREMENT

Temperature Range
(models)

-20 to +60°C/-4 to 140°F w/CR2032 battery
(1-year battery replacement suggested)
-20 to +80°C/-4 to 176°F w/BR2032 battery
(1/2 year battery replacement suggested)

RFID Temp

Accuracy: ± . 5°C typical, ±2°C Max over entire range
Resolution: 0.5°C/1.0°F

RFID Temp/RH

Temp Accuracy: 0.5°C/1.0°F typical
Temp Resolution: 0.5°C/1.0°F

RH Accuracy: ±2% typical, ±3% max [20-80% RH] ±5% max [0-100% RH] RH Resolution: 0.5% RH
