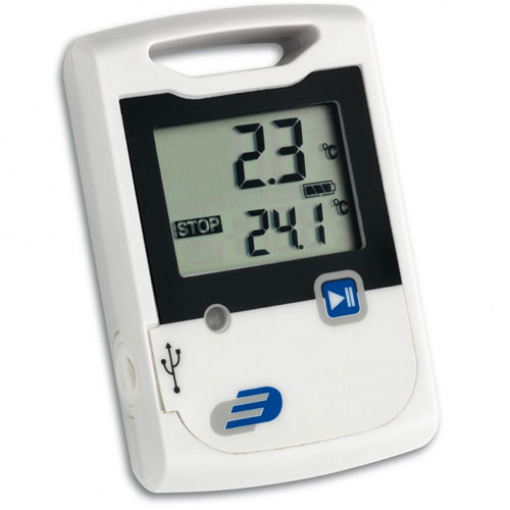

Temperature Data Logger Log100

Log100 Temperature Data Logger
Data-logging digital thermometer for monitoring climate-controlled indoor environments

Log100 is a temperature data logger ideal for monitoring room or ambient air temperatures during product manufacturing, processing, transportation and storage. In the food sector, the Log100 aids in Hazard Analysis and Critical Control Points (HACCP) compliance, ensuring the cold chain remains unbroken.

The Log100 temperature data logger requires no installation, providing a quick, easy and economical solution for monitoring the temperature of nearly any climate-controlled indoor environment. This data-logging digital thermometer comes manufacturer calibrated. An optional ISO calibration certificate can be obtained for an additional fee – see accessories for details.

– Large, easy-to-read screen displays maximum, minimum and average values in real time
– Waterproof IP65 ingress protection rating
– Visual and acoustic alarm for high and low values
– Memory stores up to 60,000 readings with 2 variables
– Adjustable sampling rate from 1 second to 24 hours
– On-screen battery power indicator
– Easy-to-change battery
– High precision
– Features input for optional external temperature sensor – see accessories for details
– Requires additional Windows-compatible software for configuration – see accessories to purchase

Internal temperature
Measurement range	-20 … 50°C / -4 … 122°F
Resolution	0.1°C / 0.18°F
Accuracy ± 1 digit	± 0.5°C (0.9°F) / -20 … 50°C (-4 … 122°F) ± 0.7°C / 0.26°F (in the rest of the range)
External temperature
Measurement range	-50 … 125°C / -58 … 257°F
Resolution	0.1°C / 0.18°F
Accuracy ±1 digit	± 0.5°C (0.9°F) / 0 … 40°C / 32 … 104°F ± 1.0°C / 1.8°F (in the rest of the range)
Internal Relative Humidity
Measurement range	– – –
Resolution	– – –
Accuracy ±1 digit	– – –
Protection type	IP 655
Display range	-10 … 70°CC
Memory	Approx. 60,000 measurement values
Interface	USB
Housing	7 segments LCD
Dimensions	92 x 55 x 21 mm / 3.6 x 2.2 x .8 in
Weight	95 g / < 1 lb
Power supply	1 x CR2032 3V
