Temperature Data Logger incl. ISO Calibration Certificate PCE-JR 911-ICA
PCE-JR 911-ICA
Availability : กรุณาติดต่อสอบถาม

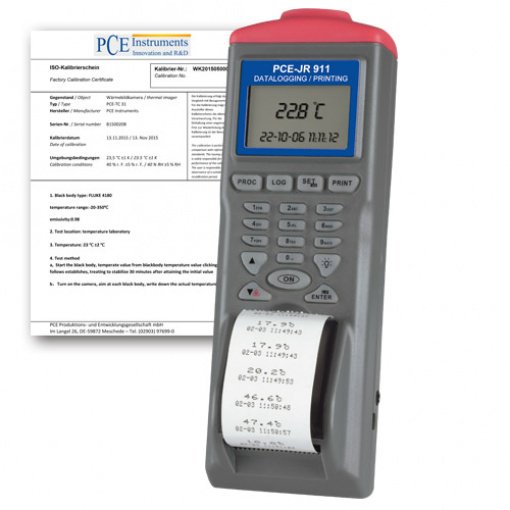

The PCE-JR-911 Data- Logger with Data- Logger is a versatile tool in that it can measure the temperature of objects without contact and readings can be stored in memory and transferred to a computer by way of its RS-232 interface and software. This Data- Logger comes complete with a Data- Logger, allowing the user to program specific time intervals for taking measurements, such as over an entire week. Once a series of measurements have been taken, this data can be transferred to a computer for analysis. Incorporated in the thermometer is a small thermal printer so the user can print readings instantly. Another characteristic is the possibility to designate 99 measurement positions to allow for them to be clearly classified.
The Data- Logger’s emissivity can be adjusted between 0.3 and 1.0, depending on the surface material. The visible pointer allows for the object being measured to be targetted with accuracy. Due to its multiple capabilities, this Data- Logger is used in many different sectors including the industrial and food sectors as well as research and development.
The Data- Logger is shipped with a factory calibration. An ISO calibration can be ordered separately. Its many components provide the Data- Logger with a multitude of uses. Optional components include a tripod, an RS-232 to USB adaptor and replacement rolls of paper for the printer
– Adjustable date and time
– Printer, memory and Data- Logger integrated
– RS-232 interface
– Data- Logger for up to 1200 readings
– Possibility to designate 99 measurement positions
– Software with RS-232 cable
– Infrared point for accuracy
– Adjustable emissivity
– Can be mounted on a tripod
– Backlit display
– Auto shut-off function
– Modes of operation:
– Measurement and printing of data
– Measurement and printing of data in tables
– Measurement time intervals over a long duration, readings transferred to a computer
***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.
| Temperature range | -40 to 500°C / -40 … 932°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ±2% of reading or ±2°C / 3.6°F (the highest value is valid) |
| Emissivity | 0.3 … 1.0 (adjustable) |
| Optical resolution | 8:1 |
| Response time | 0.2 seconds |
| Memory | 1200 readings |
| Interface | RS-232 (optional RS-232 to USB adaptor available) |
| Measurement interval | (adjustable) |
| Printer | Integrated thermal printer, 38 mm / 1.5 in wide for 28 x 30 mm / 1.1 x 1.2 in paper |
| Display | LCD |
| Power | 4 AA batteries or optional mains adaptor |
| Dimensions | 208 x 70 x 53 mm / 8.2 x 2.8 x 2 in |
| Weight | 260 g / < 1 lb |
