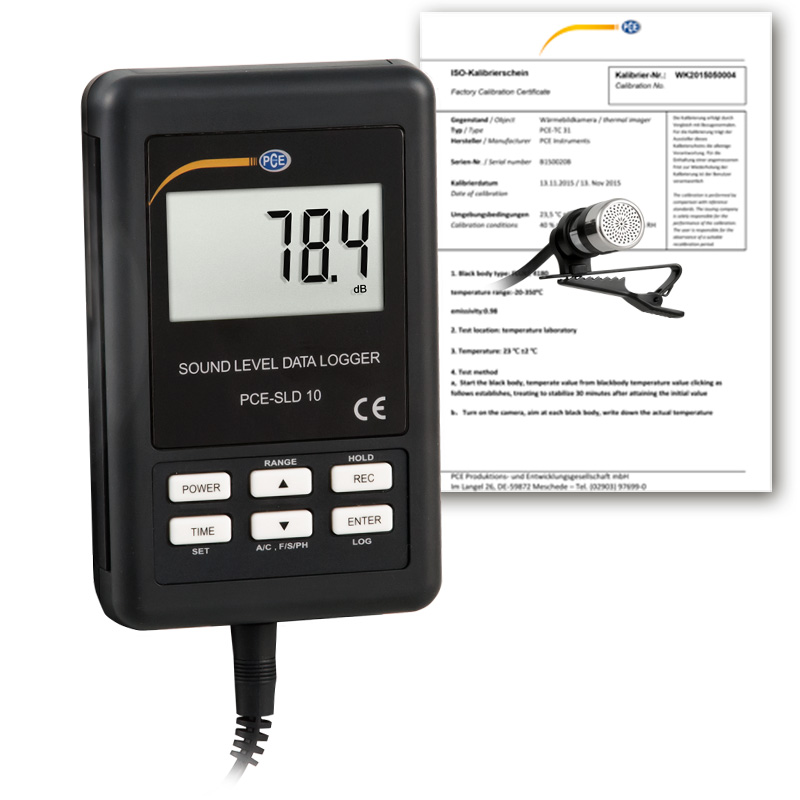

Sound Level Data Logger PCE-SLD 10-ICA Incl. ISO Calibration Certificate

Sound level data logger PCE-SLD 10-ICA incl. ISO calibration certificate�

The sound level data logger PCE-SLD 10 is used for permanent monitoring of the sound level. In addition to storing the measured values, the sound level data logger is able to display the measured values ​​on a display and output them as a 4 … 20-mA analog value. The sound level data logger has a wide measuring range of 30 … 130 dB. Frequency weighting is done in A or C depending on the selected measurement mode. Alternatively, the sound level data logger can measure the sound level in fast or slow mode.

The measured values ​​are stored by the sound level data logger as an Excel file on a memory card. This has the advantage that after a measurement, the SD memory card can be easily removed from the sound level data logger and the data can be evaluated without additional software. The PCE-SLD 10 sound level data logger is powered by 6 x 1.5V AAA batteries. For long-term operation, an external plug-in power supply is included in the sound level data logger.

The sound level data logger PCE-SLD 10 is used wherever the noise level has to be permanently monitored and a controller is to carry out further actions. In a production hall, for example, this can be the visualization of the sound level on a large display. Or, in conjunction with switchgear, closing windows and doors when the sound level is exceeded.

– Wide measuring range up to 130 dB
– Analog output with 4 … 20-mA
– Data interface
– LC display
– SD card memory up to 16 GB
– EXCEL storage
– External microphone
– Battery and mains operation
– Incl. ISO calibration certificate

Measuring range	30 … 130 dB
Measurement accuracy	Based on class 2 according to IEC61672
Resolution	0.1 dB
Frequency	A & C
Term review	Fast: 125 ms
	Slow: 1 s
Frequency range	31.5 Hz … 8 kHz
Measuring range selection	30 … 130 dB (auto)
	30 … 80 dB
	50 … 100 dB
	80 … 130 dB
Measurement functions	Hold by pressing a button
	Peak Hold
	Max-Min
Analog output	4 … 20-mA
Note: The scaling of the analog output depends on the selected measuring range.
Adjustment	Via optional calibrator in an internal menu
Data storage	SD card max 16 GB
Storage rate	5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s
Memory error	<0.1% of the total stored data
Refresh rate from the display            �	About 1 s
Interface	Serial, for live visualization on computers
	(Data cable SOFT-LUT-USB sold separately)
Power supply	6 x 1.5V AAA batteries
	9V / 1 A power adapter
Automatic shutdown	After 10 minutes without operation
	Disabled when in power supply mode
Operating conditions	0 … 50°C / 32 … 122°F,  max. 85 rh
Weight	About 230 g / < 1 lb
Dimensions	Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in
	Microphone: 12.5 x 32 mm
	Cable length: approx. 120 cm
