Multi Channel Data Logger PCE-KD9

Multi Channel Data Logger with max. 72 Analogue and Binary Inputs / RS485-Interface / Max. 36 Thermo element or 18 Resistance Inputs / TFT display with Touch Screen / Data Logger for max. 90 Channels / 8 integrated PID controllers

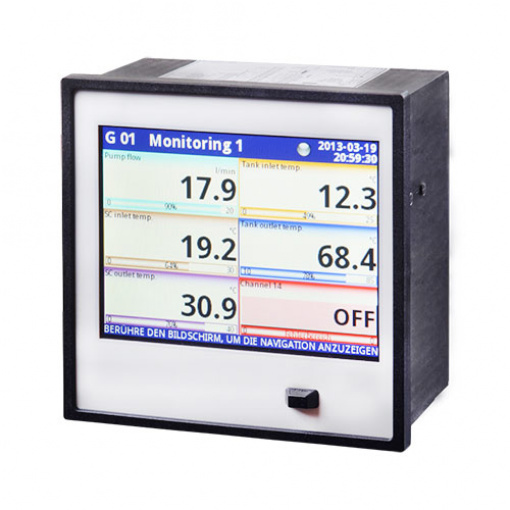

The multi-channel data logger PCE-KD9 can be applied to either capture, visualize, save or control measuring data and processes. This data logger is a device for universal application based on Linux operating systems. Through three slots, each with inputs, the screen recorder can be equipped with up to 72 analogue inputs, 72 binary inputs, 36 TC inputs (e.g. type K thermal element), 18 RTD inputs (e.g. PT100 probes), 36 relay / SSR- inputs or 24 analogue outputs. These possibilities make this multi-channel data logger suitable for almost all imaginable applications. The captured processing and switch signals are directed onto 90 internal logical channels of the data logger and thus they can be processed in several ways or they can be used via 8 integrated PID regulators for process regulation. There is also the option provided to use the 1.5 GB internal data storage of the data logger to feed-in data with a maximum sampling rate of 10 Hz. Thus a maximum of 200 values per second can be logged by the data logger PCE-KD9, while the total capacity of the paperless recorder counts more than 2,000,000 values. The man-machine interface consists of a coloured TFT display multi-channel data logger with touch screen. The data logger is able to display the captured data in 6 different display modes. The communication of the multichannel data logger with higher-level process control systems or subordinate sensors or transducers can be handled via various digital interfaces. RS485/232, USB or Ethernet are available if the slots in the multichannel data logger are equipped accordingly. These interfaces can even be used to connect a mouse or keyboard to the multichannel data logger. By means of the optional software the range of applications can be further expanded. It is used to capture, archive and display measurement data and thus enables analysis of the measurement series recorded by the multichannel data logger.

– Max. 72 analogue and binary inputs
– Graphics-capable 5.7″ TFT display with touch screen
– Transmitter power supply 24 V DC / 200 mA
– 8 integrated PID controllers
– Interface RS485 / Modbus RTU
– 3 slots freely available
– Sampling rate max. 10 Hz
– Optionally with Ethernet interface
