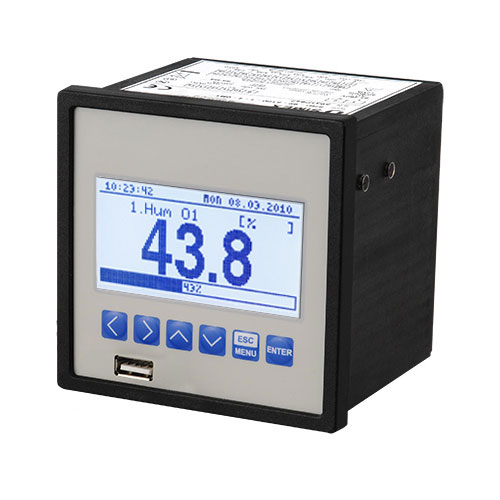

Data Logger PCE-KD3

Max. 8 measuring channels / Internal data memory / Connection for USB stick / RS-485 interface / Digitally scalable inputs / With sensor supply

The data logger PCE-KD3 was developed to measure and record measured values ​​of standard analog signals or temperature sensors. In addition, the data logger PCE-KD3 can visualize the measured values ​​graphically. The PCE-KD3 is optionally equipped with 1, 4 or 8 measuring channels. The memory of 8MB is sufficient for about 3 million readings. As soon as a USB stick is connected to the paperless recorder, the measured values ​​are transferred from the internal memory to the stick. The PCE-KD3 is mounted in the front panel of a control cabinet. Internal relays allow an alarm. Thanks to the integrated RS485 interface, the measured values ​​can be transmitted via Modbus to a process control system from the paperless recorder.

– Graphic LCD display 128 x 64 pixels with backlight
– USB port for USB stick
– Internal memory: 8 MB
– RS-485 interface
– Inputs digitally scalable
– Sensor supply
– Configuration via PC or directly on the analog recorder
– Various display modes
– Password protection
