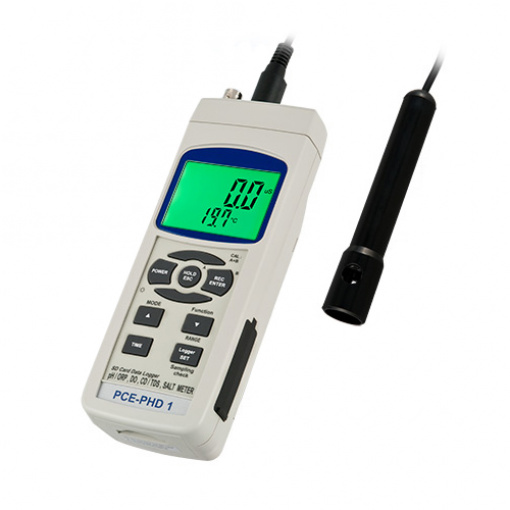

Conductivity Data-logging Meter PCE-PHD 1-LF

Name: Conductivity Data-logging Meter PCE-PHD 1-LF
SKU: 11459
Availability: BackOrder

PCE-PHD 1-LF

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Data Logger / Data Logging Instrument

รายละเอียดเพิ่มเติม

PCE-PHD 1-LF Conductivity Data-Logging Meter�

SD card memory (1 … 16 GB), stored data is stored as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC / Includes a conductivity electrode

PCE-PHD 1-LF Multifunction Conductivity Data-Logging Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Data-Logging Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.

Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-LF is supplied with a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-LF acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.

– Real-time data logger
– Compatibility with SD cards up to 16 GB
– The stored data is saved directly as an Excel file on the SD card (no software needed for evaluation)
– RS-232 interface for online data transmission
– High precision
– Low battery indication
– Large LC display
– Adjustable measuring rate
– Easy to use
– Robust housing
– Automatic calibration
– Manual or automatic temperature compensation
– BNC connector
– Suitable for laboratory and on-site measurement
– Electrode for conductivity included

Conductivity
Measurement range	0 … 200 µS/cm, 0.2 … 2.0 mS/cm, 2 … 20.0 mS/cm, 20 … 200 mS/cm
Resolution	0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy	±2 % of the measurement range + 1 digit
Calibration	1413 mS/cm
Temperature compensation	Automatic (0 … 60 ºC / 32 ºF … 140 ºF)

General specifications
Measurement rate	1 second up to 8 hrs 59 mins 59 secs
Display	LCD 52 x 38 mm / 2 x 1.5″
Memory	SD card up to 16 GB (2 GB card included)
Interface	RS-232
Software	Optional
Power supply	6 x 1.5 V AA batteries (optional power adapter)
Operating conditions	0 … +50 ºC / < 85 % RH
Dimensions	177 x 68 x 45 mm / 7.0 x 2.7 x 1.8″
Weight	490 g / 1.1 lbs

Conductivity Data-logging Meter PCE-PHD 1-LF
