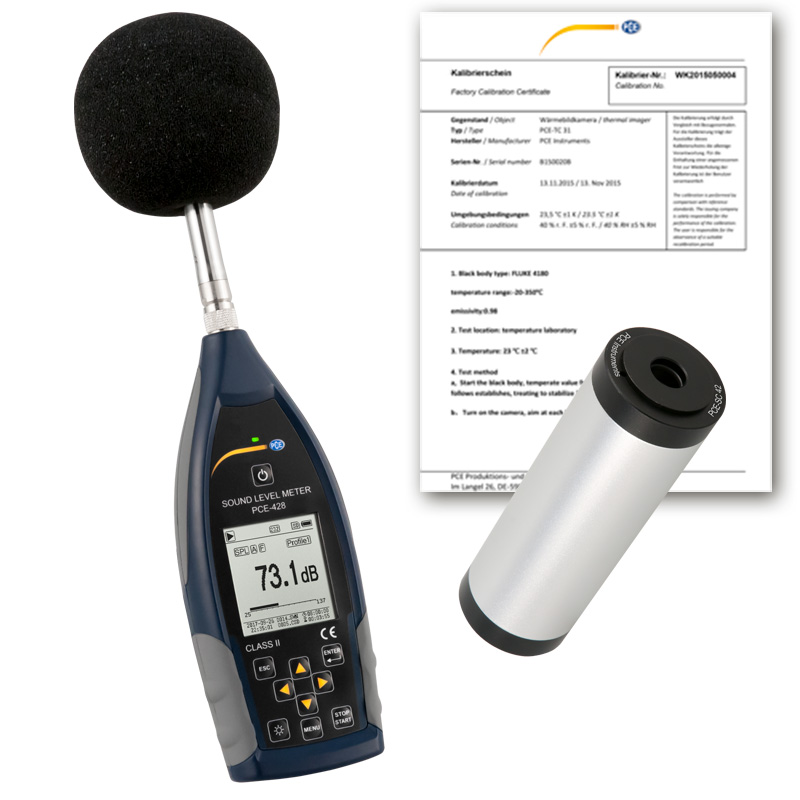

Class 2 Sound Level Data Logger KitPCE-428-KIT-ICA incl. ISO Calibration Certificates
Portable high-accuracy decibel meter with 1/1 octave band filter (optional 1/3 octave band filter upgrade), plus calibrator and factory calibration certificates (per ISO 9001)
PCE-428-KIT is a class 2 data-logging sound level meter kit that meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable high-accuracy sound level meter has a large easy-to-read illuminated LCD screen that displays the sound pressure level (SPL) numerically and graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected.
The handheld meter also functions as a data logger, recording measurements at an adjustable interval from 1 s … 24 h and storing the recorded measurement data to a micro SD card memory. The SD card can be removed from the meter and inserted into the SD card reader of a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.
This device measures from 25 … 136 db(A) at a frequency of 20 Hz … 12.5 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-428 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits.
The included acoustic calibrator (PCE-SC 42) is suitable for use with type 2 / class 2 SPL meters. The portable calibrator is easy to use in the field or the laboratory.
– Accuracy class 2
– A, B, C and Z frequency weightings
– Fast, slow and impulse time weightings
– 1/1 octave band filter (optional 1/3 octave band filter upgrade – see accessories)
– Adjustable data-recording interval from 1 s … 24 h
– Real-time numerical and graphical LCD display
– Adjustable alarm
– Kit includes type 2 / class 2 acoustic calibrator (PCE-SC 42)
– incl. ISO Calibration Certificate for PCE-428 andISO Calibration Certificate for PCE-SC 42
Meter specifications (PCE-428) | |
Measuring range | 25 … 136 db(A) |
Accuracy | Class 2 |
Frequency range | 20 Hz … 12.5 kHz |
Standards | GB/T 3785.1-2010 GB/T 3785.2-2010 IEC 60651:1979 IEC 60804:2000 IEC 61672-1:2013 ANSI S1.4-1983 ANSI S1.43-1997 |
Frequency analysis | 1/1 Octave band filter: 20 Hz … 8 kHz 1/3 Octave band filter: 20 Hz … 12.5 kHz |
Microphone | 1/2″ Microphone Class: 2 Sensitivity: 40 mV/PA Frequency range: 20 Hz … 12.5 kHz Connection: TNC Power supply: ICCP Standard |
Data-logging interval | 1 s … 24 h (adjustable) |
Measuring functions | LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
X = Frequency weighting: A, B, C, Z Y = Time weighting: F, S, I N = Statistics in %: 1 … 99 % |
|
Frequency weightings | A, B, C, Z |
Time weightings | Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms |
Inherent noise | Microphone: 20 db(A), 26 db(C), 31 db(Z) Electronics: 14 db(A), 19 db(C), 24 db(Z) |
AD converter | 24 Bit |
Sample rate | Standard: 48 kHz LN Mode: 20 ms |
Measuring display | Numerical Bar graph Graphical |
Display | 160 x 160 pixel LCD with backlight |
Memory | 4 GB Micro SD card |
Interface | USB (Memory readable via software or directly as mass storage) RS-232 |
Voltage output | AC 5V RMS DC 10 mV/db |
Alarm | Adjustable |
Power supply | 4 x 1.5 V AA Batteries 12 V / 1 A Power plug 5 V / 1 A USB |
Battery life | Min. 10 h continuous use |
Dimensions | 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42″ (W x H x D) |
Weight | Approx. 620 g / 1.4 lbs incl. batteries |
Acoustic calibrator specifications (PCE-SC 42) | |
Frequency | 1 kHz / ± 0.1 % |
Sound pressure levels | 94 decibels (dB) and 114 dB |
Accuracy | ± 0.3 dB (at 20 °C / 68 °F and 760 mm Hg / 101325 Pa) |
Microphone | 1/2 ” and 1 ” microphone opening |
Standard | IEC 942 class 2 |
Power supply | 1 x 9 V battery (block, NEDA 1604, Burgess 2U6 or similar) |
Battery life | Approx. 100 hours |
Environmental conditions | -10 … +50 °C / +14 … +122 °F |
Storage conditions | -40 … +65 °C / -40 … +149 °F (remove battery beforehand) |
Temperature coefficient | 0 … 0.01 dB / °C |
Altitude effect |
Reduction of approx. 0.1 dB per altitude gain from 2000 ft from the sea level up to 12000 ft or comparable changes of the atmospheric pressure (approx. at every decrease of 50 mm Hg) |
Dimensions | Approx. 48 x 48 x 138 mm / 1.89 x 1.89 x 5.43″ |
Weight | Approx. 250 g / 0.56 lb |
