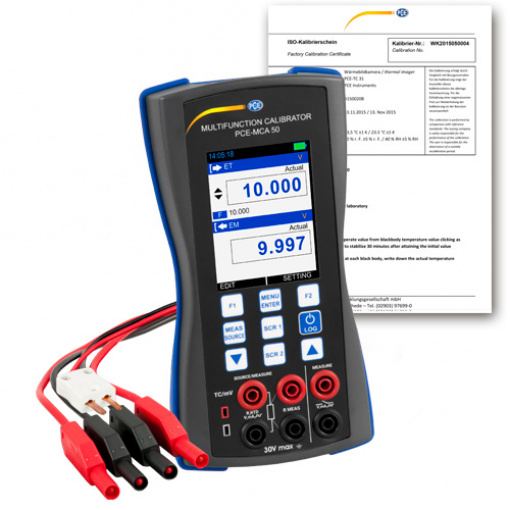

The calibrator data logger PCE-MCA 50 is designed for calibration and maintenance. This calibrator data logger enables the measurement and simulation of electrical quantities. Due to the battery operation, the calibrator data logger PCE-MCA 50 can be used in different locations. The measurement functions offered are a versatile measuring instrument that can be used in many areas. Depending on the application, the calibrator data logger can run for up to 17 hours per battery charge. The measured results can be stored on the internal measured value memory. This offers a capacity for up to 15000 values.
The calibrator data logger offers the possibility of generating and measuring DC and DC. The operation of the calibrator data logger is carried out in a simple manner via nine keys installed on the front. Likewise, test leads and thermocouple can be connected. The calibrator performs measurement functions, voltage and current simulations, as well as a continuity test. The measured values can be read off the large LC display.
– Compact handset
– User friendly menu
– Rechargeable strong battery
– Adjustable backlight
– Extreme value and average measurement
– Continuity test
– USB interface
– ABS housing with rubber protective cover
– Incl. ISO Calibration Certificate
Display modes | Measurement: mA / V / mV / mA (24V) / Switch test / Temperature thermocouple / Resistance thermometer / Frequency / Pulse | ||
Simulation: mA / V / mV / mA (2 W) / Resistance / Resistance Thermometer / Temperature Thermocouple / Frequency / Pulse | |||
Maximum input voltage | 30V DC | ||
Input impedance Measurement | Thermocouple, mV, V, frequency, pulse: 1 MΩ mA: 10 MΩ |
||
Response time | <100 ms | ||
Load impedance | > 4.7 KΩ for thermocouple / mV / V / pulse / frequency <750 Ω for mA |
||
Refresh rate display | 10 readings per second | ||
Isolation | 500V DC | ||
Data storage | 150000 measured values maximum | ||
Interface | USB 2.0 | ||
Display | 3.2″ TFT LCD 240 x 320 pixels LED illuminated |
||
Output voltage Current loop | 24V DC / 24-mA | ||
HART mA loop Resistance | 250 Ω ± 20% | ||
Special features | Step and ramp function Automatic and manual mode √x, x2: For the measuring function |
||
Continuity test | Adjustable threshold value up to 100 Ω | ||
Power supply | Rechargeable battery, 3000-mAh 3.7V | ||
Charging time | Max. 5 hours | ||
Power adapter | 100 … 240V AC, 50/60 Hz, output 5V DC at 1 A | ||
Battery life | > 17 h: Simulation and measurement with low LCD illumination > 9 h: Measurement with low LCD illumination |
||
Dimensions (L x W x H) | 185.6 x 97.1 x 41.3 mm / 7.3 x 3.8 x 1.6 in | ||
Weight | <500 g / 1.1 lbs | ||
Protection class | IP20 | ||
Operating conditions | 0 … 55°C / 32 … 131°F, 30 … 90% RH (non-condensing) | ||
storage conditions | -20 … 60°C / -4 … 140°F, 30 … 90% rh (non-condensing) | ||
Heating time | 5 minutes | ||
Technical data electrical measurement | |||
Parameter | Measuring range | Resolution | Measurement accuracy |
V | 0 … 30V DC | 0.001V | ± 0.02% of v. Mw. ± 2 Dgt |
mA | 0 … 24-mA | 0.001-mA | ± 0.02% of v. Mw. ± 2 Dgt |
Technical data electrical simulation | |||
Parameter | Measuring range | Resolution | Measurement accuracy |
V | 0 … 12V DC | 0.001V | ± 0.02% of v. Mw. ± 2 Dgt |
mA | 0 … 24-mA | 0.001-mA | ± 0.02% of v. Mw. ± 2 Dgt |
Technical Data Measurement / Simulation Thermocouple mV | |||
Type thermocouple | Measuring range | Resolution | Measurement accuracy |
e | -200 … 1000°C / -328 … 1832°F | 0.1°C / 0.18°F | ± 0.3°C / 0.54°F |
J | -200 … 1200°C / -328 … 2192°F | 0.1°C / 0.18°F | ± 0.3°C / 0.54°F |
K | -200 … 1372°C / | 0.1°C / 0.18°F | ± 0.3°C / 0.54°F |
T | -200 … 400°C / -328 … 752°F | 0.1°C / 0.18°F | ± 0.3°C / 0.54°F |
B | 450 … 1800°C / 842 … 3272°F | 0.1°C / 0.18°F | ± 0.5°C / 0.9°F |
R | 0 … 1750°C / 32 … 3182°F | 0.1°C / 0.18°F | ± 0.5°C / 0.9°F |
S | 0 … 1750°C / 32 … 3182°F | 0.1°C / 0.18°F | ± 0.5°C / 0.9°F |
N | -200 … 1300°C / -328 … 2372°F | 0.1°C / 0.18°F | ± 0.3°C / 0.54°F |
mV | -10 … 80 mV -10 … 250 mV |
0.001 mV 0.01 mV |
± 0.02% of v. Mw. ± 4 μm ± 0.02% of v. Mw. ± 0.02 mV |
Technical data Frequency measurement | |||
Measuring range | Resolution | ||
0.0143 … 9.9999 Hz | 0.0001 Hz | ||
10 … 99,999 Hz | 0.001 Hz | ||
100 … 999.99 Hz | 0.01 | ||
1000 … 9999.9 Hz | 0.1 Hz | ||
10000 … 50,000 Hz | 1 Hz | ||
Function | Specification | ||
Triggering threshold | 0 … 12V in 1V increments | ||
Measurement accuracy | ± 0.01% of v. Mw. ± 1 Dgt | ||
Supported units | Hz, kHz, cph, cpm, sec., Msec., Μsec | ||
Technical data Pulse counting | |||
Function | Specification | ||
Measuring range | 0 … 999999 pulses | ||
Triggering threshold | 0 … 12V in 1V increments | ||
Technical data Frequency generation | |||
Measuring range | Resolution | ||
0.0005 … 0.5 Hz | 0.00001 Hz | ||
0.5 … 50 Hz | 0.0001 Hz | ||
50 … 500 Hz | 0.001 Hz | ||
500 … 5000 Hz | 0.01 Hz | ||
5000 … 10000 Hz | 0.1 Hz | ||
Function | Specification | ||
Output amplitude positive square wave | 0 … 12V PP (± 0.5V) | ||
Output amplitude symmetrical square wave | 0 … 6V PP (± 0.5V) | ||
Measurement accuracy | ± 0.02% of reading ± 2 | ||
Duty cycle | 1 … 99% (up to 500 Hz) | ||
Supported units | Hz, KHz, cph, cpm, sec., Msec., Μsec. | ||
Technical data Pulse generation | |||
Function | Specification | ||
Measuring range | 0 … 999999 pulses | ||
Resolution | 1 pulse | ||
Output amplitude positive square wave | 0 … 12V PP (± 0.5V PP) | ||
Output amplitude symmetrical square wave | 0 … 6V PP (± 0.5V PP) | ||
Pulse frequency | 0.0005 … 10000 Hz | ||
Duty cycle | 1 … 99% (up to 500 Hz) | ||
Technical Data Measurement and Simulation | |||
Parameter | Measuring range | Resolution | Measurement accuracy |
Resistance (Ω) | 0 … 400 Ω | 0.01 Ω | 4-wire measurement: ± 0.02% of vol. Mw.± 0.01Ω Simulation: ± 0.02% v. Mw ± 0.02 Ω |
400 … 4000 Ω | 0.1 Ω | 4-wire measurement: ± 0.02% of vol. Mw.± 0.1Ω Simulation: ± 0.02% of v. Mw ± 0.15 Ω |
|
-200 … 200°C / -328 … 392°F | Pt10 … Pt400: 0.01°C / 0.018°F | 4-wire measurement: ± 0.15°C / 0.27°F Simulation: ± 0.15°C / 0.27°F |
|
Pt10 … Pt100 | 200 … 600°C / 392 … 1112°F 600 … 850°C / 1112 … 1532°F |
Pt500 … Pt1000: 0.1°C / 0.18°F | 4-wire measurement: ± 0.3°C / 0.54°F Simulation: ± 0.35°C / 0.63°F |
Ni100 | -60 … 180°C / -76 … 356°F | 0.01°C / 0.018°F | Simulation: ± 0.35°C / 0.63°F 4-wire measurement: ± 0.1°C / 0.18°F |
Ni120 | -80 … 260°C / -112 … 500°F | 0.01°C / 0.018°F | Simulation: ± 0.15°C / 0.27°F |
Cu10 … Cu100 | -200 … 260°C / -328 … 500°F | 0.01°C / 0.018°F | 4-wire measurement: ± 0.2°C / 0.36°F, Simulation: ± 0.8°C / 1.44°F |
Suitable thermocouple types | |||
Pt10 (285) Pt50 (385) Pt100 (385) Pt200 (385) |
Pt400 (385) Pt500 (385) Pt1000 (385) Pt100 (3926) |
Ni100 (672) Ni100 (618) Ni120 (672) |
Cu10 (427) Cu50 (427) Cu100 (427) |
