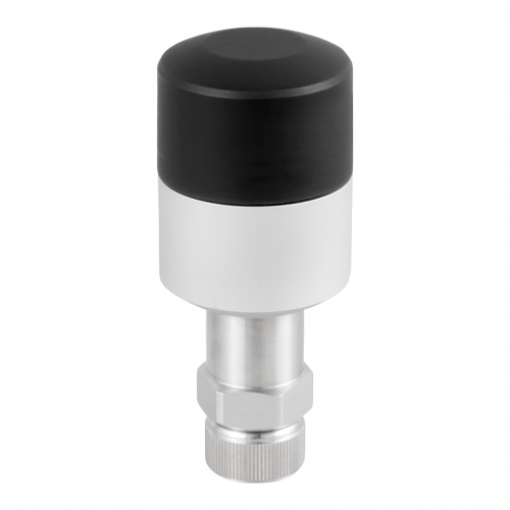

Condition Monitoring Wireless Vibration Sensor PCE-VMS 501

PCE-VMS 501 wireless Vibration Sensor to measure acceleration, speed, offset, and temperature / optional extension: max. 60 dispatchers per base with max. 6 base stations (360 dispatchers)



The wireless PCE-VMS 501 Vibration Sensor detects vibration within an acceleration range of up to 30 g and a frequency range between 5 and 10 KHz. The wireless Vibration Sensor features external vibration sensors which measure vibrations on machines and transfer those measurements wirelessly to a receiving unit. The sensors can be easily attached to a machine due to their magnetic base. Not only do the sensors measure vibrations and transfer the measurements to a computer, but the sensors also recognize temperatures between -20 °C and +120 °C. While operating, the communicating server of the PCE-VMS 504 Vibration Monitor sends the measured parameters straight to a receiving unit, which then uploads the received data straight to a server. If the system cannot establish a connection with the server, the measurements are temporarily saved on the receiving unit until a server-connection could be re-established. A main advantage of the wireless Vibration Monitor is that there are no wires, so that the set-up of the system is very quick and easy, and the wireless Vibration Monitor is able to record vibrations over a longer period of time.

Transmitter range Max. 100 m in industrial environment (130 m in free field) acceleration range up to 300 m / s² frequency range 5 Hz … 10 KHz resonant frequency 16 kHz linearity 1 % quench ≤5% Electric Isolation <108 Ω load limit 1000 g measurement parameters Acceleration, speed, displacement, temperature transmission interval minute 1 min. Per sensor� 1 sensor on a box = 1 minute,� 3 sensors on a box = 3 minutes A / D conversion 24 bits Waveform measurement range Max. 512 kB frequency lines 800, 1600, 3200, 6400 Temperature measuring range -20 … +120 ° C screw thread 6 mm housing material Floor 316 L stainless steel,� top aluminum alloy power supply 1 x 3.6 V lithium battery (ER 34335) Battery life 1 year, depending on the transmission interval Dimensions Height: 80 mm� Diameter: 40 mm mass 217 g protection class IP65 working temperature -30 … +70 ° C� (surface temperature up to 125 ° C)
