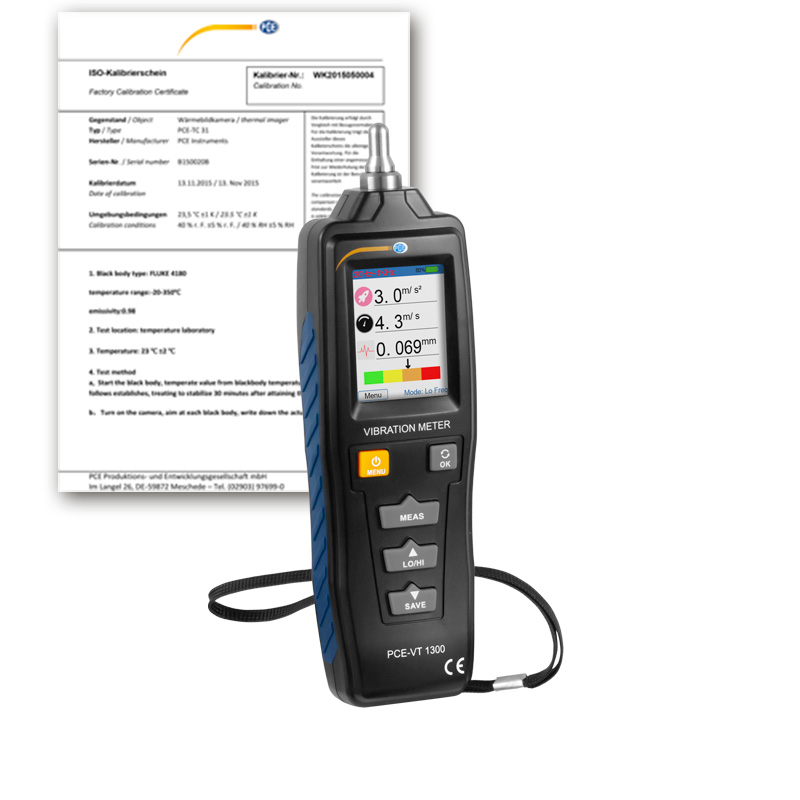

Condition Monitoring Vibration Meter PCE-VT 1300-ICA incl. ISO Calibration Cert.

The condition monitoring vibration meter is a measuring device for one-hand operation. This is made possible by the built-in acceleration sensor in the vibration meter. So that the measured values ​​can be read from different angles on the vibration analyzer, the display can be rotated by the vibration meter in 0, 90, 180 and 270°.

The display of the vibration meter is designed so that all measurement parameters such as acceleration, speed and the way can be read. Another special feature of the vibration meter is the vibration evaluation according to ISO 10816-1. The vibration meter thus graphically shows directly on the display in which area the measured value is located. As a result, the vibration meter is particularly used in quality assurance, final inspection or during maintenance work.

With the 10 mm attachment from the vibration meter, a wide variety of machines can be checked for the vibration level. With the 45 mm / 1.8 in needle tip from the vibration meter, even hard-to-reach measuring points can be reached on industrial sites.

During the vibration measurement, the measured values ​​can be saved on the vibration meter by pressing a button. After a shrinkage measurement, the recorded measurement values ​​can be analyzed numerically and graphically directly on the vibration meter.
