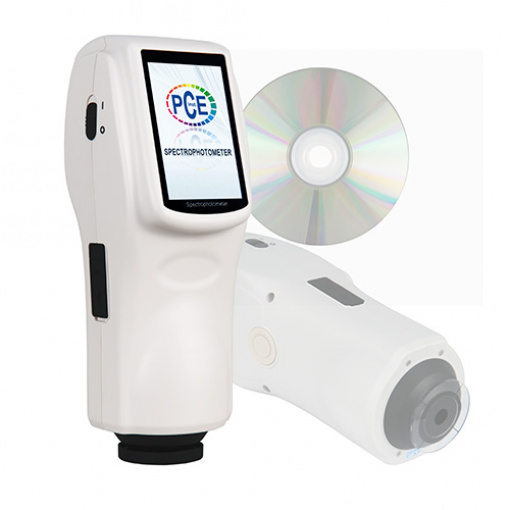

The colorimeter PCE-CSM 8 was developed for quality control, offers a high accuracy and comes with a 3.5″ touch screen display. When using the colorimeter, you can choose between different colour spaces (CIE LAB, XYZ, Yxy, LCh, LUV, HunterLAB) and 45/0 optics geometry. After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
– SCI and SCE (specular excluded)
– 3.5″ touch screen display
– 13 light source options
– white and black calibration
– 1000 alphanumeric reference values and up to 10,000 sample values memory
– WI, YI, TI, Mt, Color Stain, Color Fastness, SCI and SCE option (specular included and excluded)
– Measuring aperture of 8 mm and 45°/0° illumination/viewing angle
– high accuracy with Delta E*ab 0.04
– incl. PC software
Measuring geometry | 45/0 according to CIE No. 15, GB/T3978 |
Integrating sphere | Ø 58 mm |
Sensor | Silicon photoelectric diode |
Wavelength range | 400 … 700 nm (10 nm pitch) |
Measuring aperture | Ø 8 mm |
Colour spaces | CIE LAB, XYZ, Yxy, LCh, LUV, HunterLAB |
Colour index | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(h) |
Chromacity data | WI (ASTM E31 CIE/ISO, AATCC, Hunter) YI (ASTM D1925, ASTM E313) TI (ASTM E313, CIE/ISO) Metamerism Index Mt colour stain, colour fastness |
Observation angle | 2° / 10° |
Light source | D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12 |
Light source device | combined LED |
Life of light source | 5 years, > 1.6 million measurements |
Data on display | Spectral value/graph colorimetric value color difference (value/graph) PASS/FAIL result colour offset colour simulation |
Min. time between 2 measurements | 1.5 seconds |
Repeatability | Standard deviation within ΔE*ab 0.04 Average of 30 measurements of standard white plate |
Error between equipment | ΔE*ab 0.2 |
Display | 3.5″ TFT touch screen |
Interface | USB / RS232 |
Storage | 1,000 reference values, 15,000 samples |
Power supply | Rechargeable lithium-ion battery |
Operating conditions | 0 … +40 °C / 32 … 104°F 0 … 85 % RH |
Storage conditions | -20 … +50 °C / -4 … 122 °F |
Dimensions | 90 x 77 x 230 mm / 3.5 x 3.03 x 9.05 in |
Weight | 600 g / 21.1 oz |
