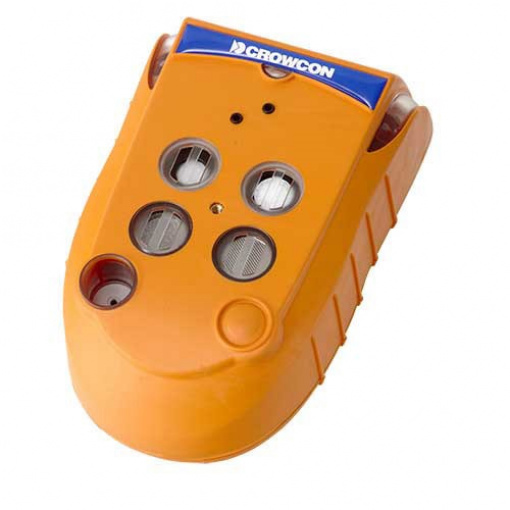

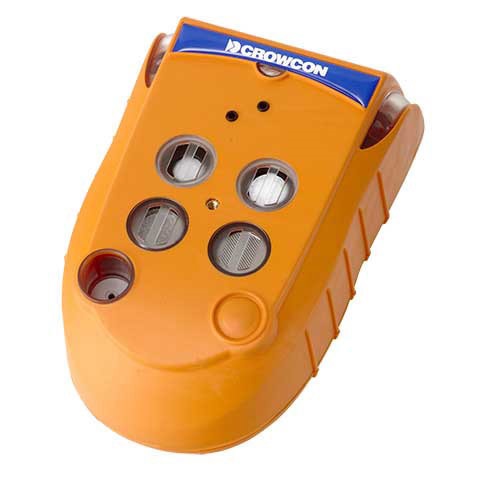

CO2 Analyser Gas-Pro-1

Mobile and compactCO2 Analyser for up to 4 different gasses with internal pump / Single-key menu and top mount display allow a very simple handling

This gas detector can gauge with its sensors a maximum of four gasses. Due to the possibility of connecting different sensors, the gas detector Gas-Pro is designed for application in areas of canals, sewage works, sewage drains, waste dumps, ships, chemical and oil industries. During development of the gas detector, the engineers particularly paid attention to small dimensions, simple handling with only one key button and to providing clear readability even in small spaces. By means of the “top mount display” these goals are reached even if the gas detector Gas-Pro-1 is worn close to the body. A single-key handling of the gas detector with a click and a double-click is very expedient and supports simple navigation through the menu even while wearing gloves. An additional unique highlight of this particular gas detector is the “Positive Safety” display, which is a three-colored LED beneath the display to make it easy to recognize the mode the gas detector is in. Green lights indicate “gas detector OK”, yellow lights demand an inspection of the gas detector, i.e. a maintenance or a calibration, red lights indicate not to initiate the gas detector and to deliver it to maintenance or repairing services. The “traffic lights” principle is even easy  to use for inexperienced workers in regards of initiation vs. default. The pre-alarm and main alarm is indicated acoustically (95 db), optically by means of two LED lights that are recognizable from any sight angle and supported by a vibration alarm. A pump to suction the gas can be integrated into the rubberized anti-shock enclosure of the gas detector Gas-Pro-1, despite of its small dimensions. A suction pump integrated in the gas detector initiates by connecting the suction cap through a reed contact. The gas detector Gas-Pro-1 operates with fully charged batteries for approximately 19 hours without pumps or 17 hours with initiated pumps. The collected gas concentrations during operation are saved every 10 seconds in an internal data storage. The measuring values the last 1000 events (initiation and shutdown, main and pre-alarm, calibration and e.g. measuring range transgression) are saved at the internal data storage as well. Thus, the collected data can be transferred from the gas detector to a computer by means of an interface cable, docking station with interface or a calibration station. To attach it to work wear, the gas detector is equipped with a stable alligator clip and an eyelet. If there are any questions about this gas detector, please have a look at the technical specification below or call:  UK customers +44(0) 2380 987030 /  US customers +1-561-320-9162.

– Acoustic alarm (95 DB)
– Optical alarm (two LED lights red/blue)
– Gas indicator with vibration alarm
– Extremely simple handling
– Head mounted display
– “Positive Safety” display red/yellow/green
– Diffusion or pump mode
– Impact resistant synthetic rubberized
– LCD with lights
– Intrinsic safety allows wearing in ex-range
– Frequent “OK” control beep
– Gas detector monitors a maximum of 5 different gasses simultaneously
– Water and dust resistant IP 65 /67
– Gas Detector with data logger function
– Fully automated calibration with optional purchasable I-test station
