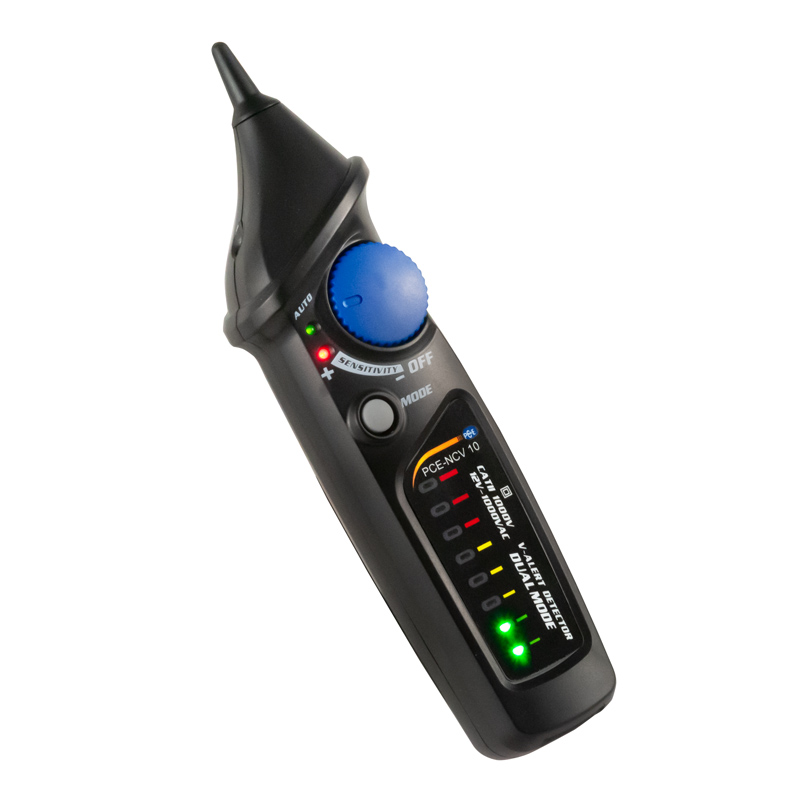

Cable Fault Meter PCE-NCV 10

The cable fault meter is ideal for finding the phase in sockets or lines. The electronic cable fault meter recognizes the phase without contact. The cable fault meter has several LEDs that indicate the intensity of the measurement signal. In addition, an acoustic signal supports the location of the phase or power cable.

Two different modes on the cable fault meter make it easy to work. In automatic mode, the cable fault meter is able to detect alternating voltages between 45 … 1000V. The manual mode allows voltages between 12 … 1000V AC to be detected. To illuminate the measuring point, the test pin has an LED flashlight.

– Contactless voltage detection
– Automatic and manual mode
– Wide voltage detection range
– Acoustic and visual alarm
– Compact dimensions
– LED flashlight

Inspection	Manual: approx. 12 … 1000V AC
	Car: approx. 48 … 1000V AC
Frequency	50 Hz / 60 Hz
Alarm	Acoustic and Visual
Flashlight	White LED
Phase and N detection      �	Based on the LEDs and the acoustic signal
Operating conditions	0 … 40°C / 32 … 104°F
Storage conditions	-10 … 50°C / 14 … 122°F
Power supply	9V block battery
Safety	CAT II
Dimensions	174 x 47 x 35 mm / 6.9 x 1.9 x 1.4 in
Weight	About 68 g / < 1 lb
