Anemometer PCE-WSAC 50-720

PCE-WSAC 50-720 Anemometer

Pre-alarm and full alarm / Displays current wind speed and average wind speed of last 2 and 5 minutes

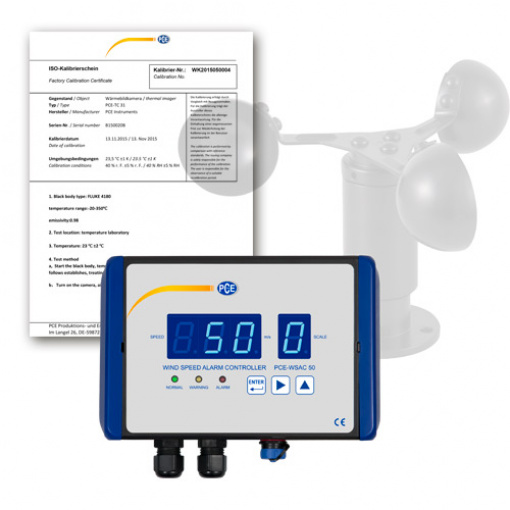

The PCE-WSAC 50 is an airflow meter alarm controller that displays the current wind speed as well as the average wind speed of the last 2 and 5 minutes. A pre-alarm and full alarm can be activated based on preset values. If wind speeds are higher than the preset values, a pre-alarm is first applied before the full alarm is issued. Both alarms are delivered visually and audibly. If the pre-alarm is triggered, a yellow LED will flash on the front of the unit and a beep will periodically be emitted as a warning tone. If the full alarm is triggered, a red LED will flash on the front of the unit and a beep will continuously be emitted.

The anemometer allows measurement of the slightest of wind movements. This airflow meter alarm controller is used for a variety of wind monitoring applications in industries such as construction, mining, renewable energy and manufacturing. If necessary, a relay can also be connected to the controller.

***Sensors sold separately***

– Pre-alarm and full alarm with visual and audible warnings
– Allows measurement of the slightest wind movements

– Power supply: 230 V AC

– Signal input: 0…10 V

– Bright, easy-to-read LED display

– Simple to use

***Sensors sold separately***

Power supply	230 V AC
Supply voltage for sensors (output)	12 V DC 24 V DC
Measuring range	0 … 50 m/s or 0 … 110 mph
Measuring accuracy	± 3% of measuring range
Signal input	0 … 10 V
Alarm relay	2 NO/NC relays with max. load of 220 V AC / 10 A
Operating temperature	-20 … +60 °C / -4 … +140 °F
Dimensions	197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7″
Weight	Approx. 400 g / 0.89 lb

***Sensors sold separately***
