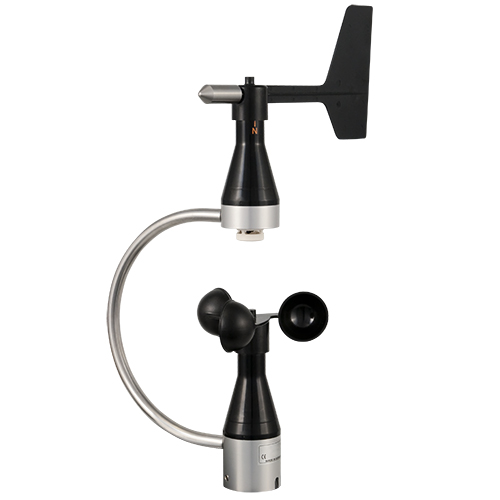

Anemometer KWS 1

Anemometer KWS1, for example, for PCE-WL wind logger. Simple cup anemometer with pulse output and wind direction sensor. Anemometer is suitable for measuring the wind speed and the wind direction of the horizontal air flow. The cup star speed is scanned without contact, the device works wear-free, and has a particularly smooth start-up. The wind vane position is detected by resistance. The digital measuring signals from the anemometer can be evaluated directly. In addition to the wind measurement, the combined anemometer can also measure the air temperature using NTC 10K.

The combined wind transmitter is made of fiber-reinforced plastic, stainless steel and aluminum. This makes the combined anemometer a reliable sensor for wind direction and wind speed. The combined wind transmitter is supplied with a 15 m connection cable and is IP 54 protected. The mounting takes place on a mast with a maximum diameter of up to 30 mm.
