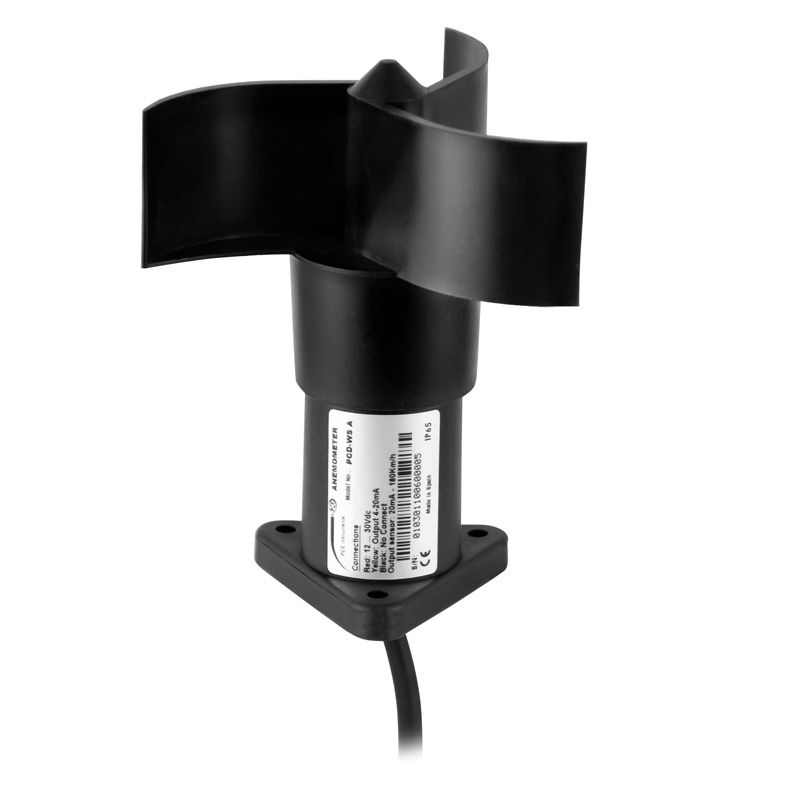

Air Velocity Meter PCE-WS A

Name: Air Velocity Meter PCE-WS A
SKU: 9936
Availability: BackOrder

PCE-WS A

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Air Velocity Meter

รายละเอียดเพิ่มเติม

Robust Air Velocity Meter for fixed installation / various output signals / �

for wind warning systems, building services and building automation

The Air Velocity Meter impresses with its compact design and various output signals. The Anemometer can be used for applications in warning technology, building automation and home technology. Depending on the Air Velocity Meter, a 4 … 20 mA, 0 … 10 V, Modbus or pulse output is available. The Air Velocity Meter is designed as a star, so that operation independent of the wind direction is guaranteed.�

The Air Velocity Meter is made of robust plastic and is therefore resistant to rust and corrosion. The Air Velocity Meter is also protected to IP65. The design of the Air Velocity Meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 … 164.04 ft/s, 0.8 … 50 m / s. The Air Velocity Meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Air Velocity Meter is optionally available.�

– Robust PA plastic housing

– IP 65 protection�

– mA, V, pulse or Modbus output

– Long lifetime

– Direct measurement of wind speed

– Measurement from 2.62 ft/s, 0.8 m / s

Measuring range	2.62 … 164.04 ft/s, 0.8 m / s … 50 m / s
Measurement from	≤2.62 ft/s, 0.8 m / s
Output	4 … 20 mA (passive)
Accuracy	<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
	> 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage	12 … 30 V DC
Operating temperature range	-4 … +185 ° F, -20 … +80 ° C at ≤95% rel. humidity
Maximum wind speed �	180.45 ft/s, 123 mph, 55 m / s
Electrical connection	65 ft, 20 m connection cable
Protection class	IP65

Air Velocity Meter PCE-WS A
