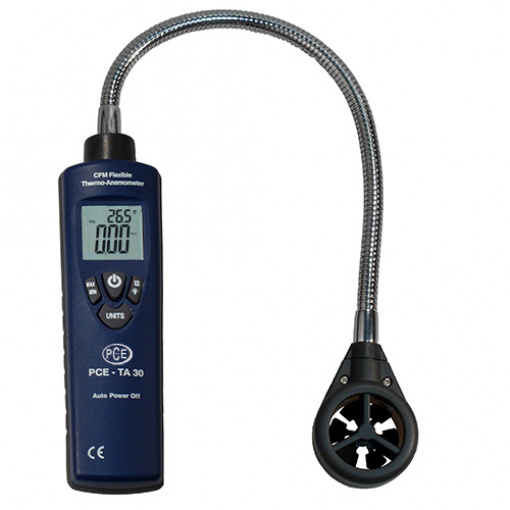

Air Flow Meter PCE-TA 30

The PCE-TA 30 air flow meter can measure air velocity, air temperature and air flow. The PCE-TA 30 air flow meter shows measurement values in its large backlight LCD display. The air flow meter shows the current value on the display as well as max. and min. values. The PCE-TA 30 air flow meter has a flexible probe with a length o 40 cm which makes it possible to use in areas here there is limited space to measure, such as cooling systems. The PCE-TA 30 air flow meter is the ideal tool for the assembler to perform instantaneous measurements. Thanks to its auto shut-off the PCE-TA 30 air flow meter can protect battery life. The PCE-TA 30 is very easy to use just with 4 keys and it is suitable for its use in different sectors thanks to its compact design.

Technical specifications Measurement ranges with indication of the corresponding units:
– m/s – ft/min – knots – km/h – mph – ft3/min – ºC	1,0 … 30,0 196 … 5900 1,9 … 58,0 3,6 … 108,0 2,2 … 67,0 0,0 … 999,900 -10 … 60,0
Resolution – m/s – ft/min – knots – km/h – mph – ft3/min – ºC	0,01 1,0 0,1 0,1 0,1 0,1 0,1
Accuracy – m/s – ft/min – knots – km/h – mph – ºC	±3% ±0,2 ±3% ±40 ±3% ±0,4 ±3% ±0,8 ±3% ±0,4 ±1,5
Display	LCD display
Sensor	flexible probe probe length: 300 mm Ø probe: 27,2 mm
Operating conditions	air flow meter:   0 ºC … +40 ºC / <95% H.r. thermal probe: 0 ºC … +50 ºC / <80% H.r.
Power	1 x  9 V battery
Auto shut-off	yes, after 5 min of inactivity (to protect battery life)
Dimensions	163 x 45 x 34 mm
Enclosure	ABS plastic
Weight	257 g
