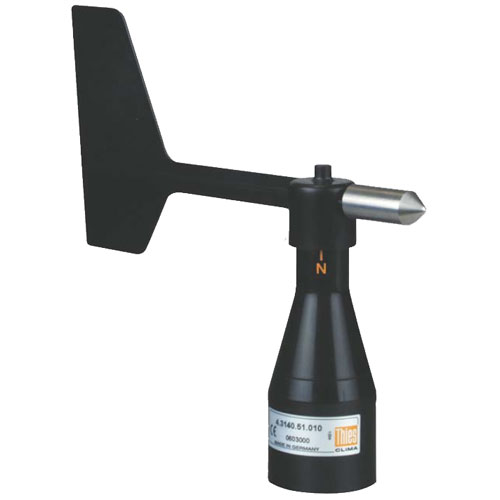

Air Flow Meter KWR 1

Wind direction sensor PCE-KWR1 for example for PCE-WL wind logger. Basic wind direction sensor with potentiometer output.

Technical Datas
Output	0 … 1000 Ohm
Measurement reading range	10 … 350 °
Accuracy	± 5 °
Start-up Load	1 m/s at 90°
Contact Load	0.3 W max 1 mA
Assembly	mounting bracket
Ambient temperature	25 … +60 °C (in ice-free conditions)
Cable (selectable)	3 m; LiYY 4 x 0.5 mm²
Protection class	IP54
Weight	ca. 300g
