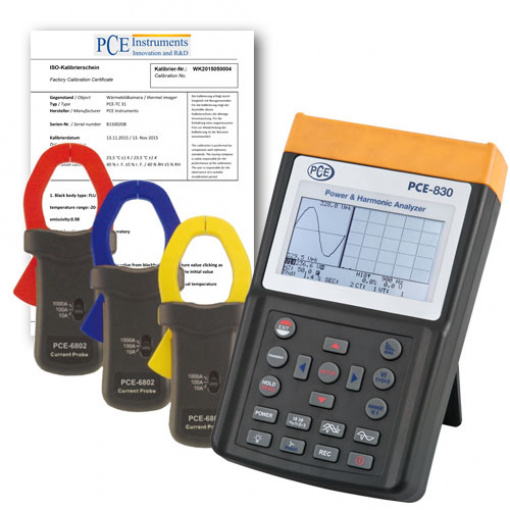

Three Phase Power Analyzer incl. ISO Calibration Certificate PCE-830-2-ICA

– Analysis of a network of 3 phases/4 conductors, 3 phases/3 conductors, 1 phase/2 conductors, 1
phase/3 conductors
– Measures effective real value (V 123 and I 123)
– Measures active power (W, KW, MW, GW)
– Measures apparent and reactive power (KVA, KVAR)
– Power Factor (PF), phase angle (Φ)
– Measures energy and work (Wh, KWh, KVARh, PFh)
– Measures current from 0.1mA to 3000A, allowing for the reserve power of a factory to be determined
– Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors])
– CT conditions (1 to 600) and PT (1 to 3000) are programmable
– Indicates current wave forms and voltage overlap.
– 512KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17,470 readings
using the system of 3 phases / 4 conductors)
– Indicates wave forms, efficiency parameters and harmonic distortion
– Backlit LCD wth dot matrix
– Average power (AD in W, KW, MW)
– Maximum power (MD in W, KW, MW) with the programmable period
– Analysis of harmonic distortion up to a curvature of 99
– Indication of up to 50º form of harmonic wave
– Indication of the wave form with maximum value (1024 readings / period)
– Analysis of absolute distortion (%THD-F)
– Diagram of graphic equilibrium with parameters of a 3 phase system
– Detects up to 28 transistors (time and cycles) with a programmable threshold (%)
– Relation of 3 phases of voltage or asymmetrical current (VUR)
– Factor of 3 phases of voltage and asymmetrical current (d0%, d2%)
– USB port (optically insulated)
– Integrated timer and calendar to record data
