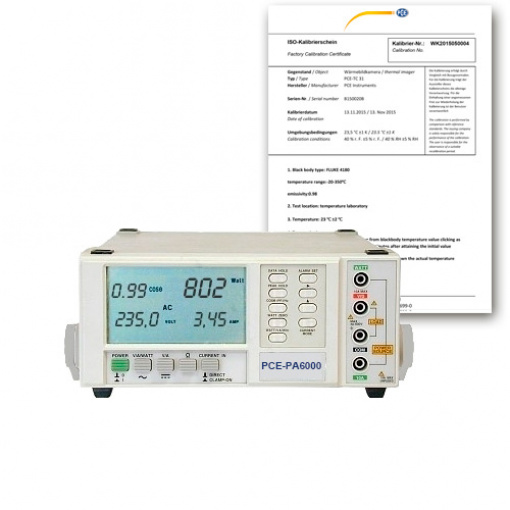

Power Quality Analyzer PCE-PA6000-ICA incl. ISO Calibration Certificate

Name: Power Quality Analyzer PCE-PA6000-ICA incl. ISO Calibration Certificate
SKU: 16185
Availability: BackOrder

PCE-PA6000-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Power Analyzers

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

power analyser with RS-232 interface and software to analyse power consumption

The PCE-PA6000 power analyser is a tabletop device for measuring effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance and frequency. The power analyser also offers the possibility to connect industrial current converters with a transmission relation of 100/5A or 1000/5A. Its large 93 x 52mm LCD is easy to read and provides a variety of results, including Watts, cos φ, ACV and ACA. With the optional PCE-PA ADP current adaptor with ground wire (up to 10ACA) it can safely and quickly measure and analyse with the help of the power analyser. Measurement of current and power can be done directly with test cables that come with the device or indirectly using the clamps. The device has an RS-232 interface, and software* to analyse results and transfer data to a computer. This makes it the ideal device for any workshop or for measuring power to determine faults in devices.

*Soft-lut-usb software is available in the accessories tab

– Multimeter function

– Measurement of direct current connecting a sensor head or current clamp

– Measures effective and apparent power

– Measures power factor

– Measures energy consumption (kWh)

– Data hold / Peak hold

– Function Hold / Alarm function High / Low

– Interface RS-232

– Powered by mains adaptor or batteries

– incl. ISO Calibration Certificate

– Safety standards: IEC-1010-1; CAT II 600V

PCE-PA 6000 power meter: current adaptor for the PCE-PA 6000 power adaptor

This image shows the optional PCE-PA-ADP current adaptor

Amp clamp adaptor for measuring current indirectly up to 1000A without interrupting the conductor.
– Range: 200 / 1000DCA / ACA
– Accuracy: ±1.5 / 2%
– DCA zero reset
– Dimensions: 190 x 64 x 33mm
– Maximum diameter of the conductor: 33.5mm

PCE-PA 6000 power meter: adaptor for amp clamps

Amp clamp adaptor for the
PCE-PA 6000 power meter

The images above show the software which is used to analyse data and is supplied with the power meter. It can show 4 measurement values at a time and the graphic display can easily store data over an extended period to be analysed later.

รีวิว

ยังไม่มีบทวิจารณ์

เฉพาะลูกค้าที่เข้าสู่ระบบ และเคยซื้อสินค้าชิ้นนี้แล้วเท่านั้น ที่เขียนบทวิจารณ์ได้

Technical specifications
Function	Measurement range; Accuracy; Resolution
Measurement of real power (AC, real value of power), direct measurement	1 W … 6 kW; 1 W; ±1,5 % + 1 dgt.
Measurement of real power (AC, real value of power), with adaptor ext. or current converter	1 W … 999,9 kW; 1 W; ±1,5 % + 1 dgt.
Measurement of apparent power (AC)	0.01VA to 9.999kVA; 0.01VA; ±1.5% +1 digit
Power factor (cos φ)	0.00 to 1.00; 0.01; ±1.5% +2 digit
KWh counter	0.001Wh to 9,999kWh; 0.001Wh; ±1% +1 digit
ACV / DCV	0.1V to 600V; 0.1 / 1V; ±1% +1 digit
ACA eff/rms DCA eff/rms	direct maximum 10A; 10mA, with induction head max. 1,000A;1A; ±1% +1 digit
ACA with clamps	up to 2,000A (depending on clamps)
Frequency	10.0 to 999Hz; 0.1Hz; 1% +1 digit
Ohms	1 Ω to 19.99kΩ; 1 / 10 Ω; ±1% +1 digit
Display	93 x 52mm multi functional LCD
Operating conditions	max. 80% r.h. / 0 to 50°C / 32 to 122°F
Power	6 AA batteries or mains adaptor
Dimensions	280 x 210 x 90 mm / 11 x 8.2 x 3.5 in
Weight	1,600 g / 56.4 oz
Examples of use
In the following image there is a PCE-PA 6000 being used to repair a computer. Using the current adaptor, it can quickly take measurements of consumption and measurements of power without the need to use too many cables.
	Here is an image of the power meter’s large LCD that can show four different readings simultaneously. The display mode depends on the function setting. It can also show readings taken by the current adaptor. It just needs to be connected to the device with the grounding wire of the adaptor.
In this instance, the device is being used to test the thermal value of an electronic thermal ventilator once repaired with our PCE-PA 6000 power meter. The usefulness of the current adaptor can be appreciated here, and it is easy to attach safely without the mess of external cables. With the power meter, tests can be done easily, safely and accurately an all types of small electrical appliances up to 10A, including high consumer electronics.
