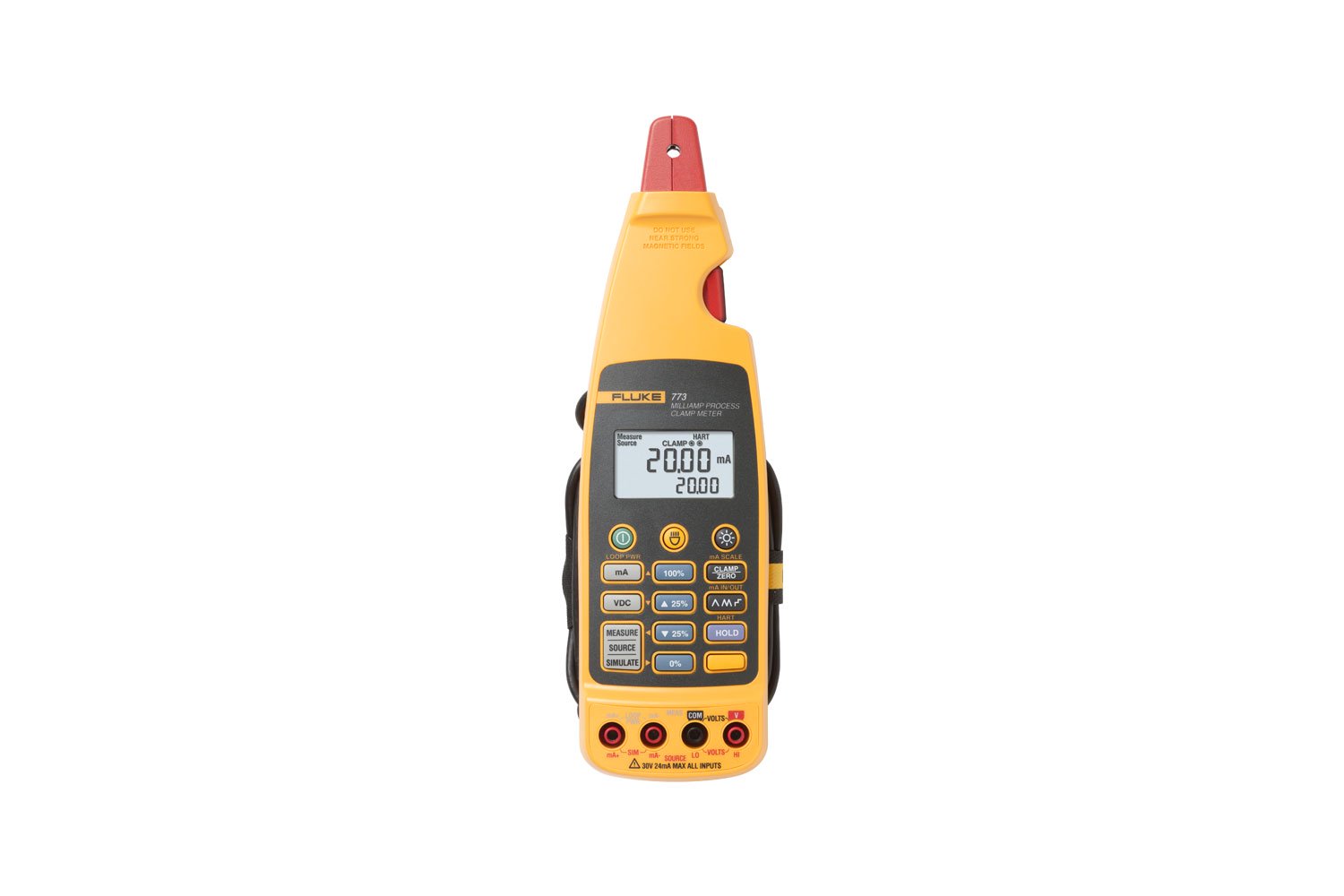

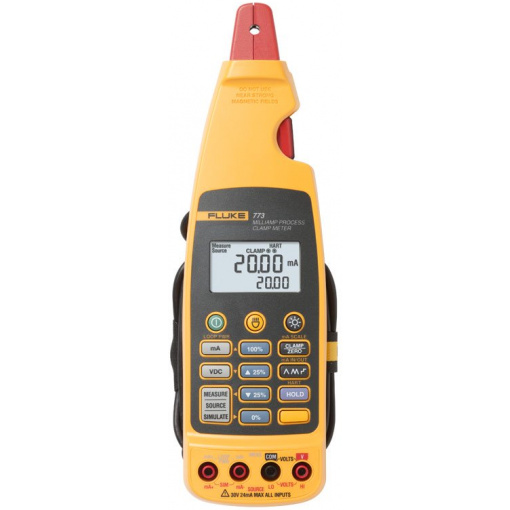

Fluke 773 Milliamp Process Clamp Meter

Availability : กรุณาติดต่อสอบถาม

Specifications: Fluke 773 Milliamp Process Clamp Meter

Specifications
Diameter of measurable conductor	0.177″ or 4.5 mm max
Operating temperature	-10 to 50ºC
Storage temperature	-25 to 60ºC
Operating humidity	< 90% @ <30ºC, < 75% @ 30 to 55ºC
Operating altitude	0 to 2000 m
IP rating	IP 40
Size	44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight	410 g, (14.4 oz)
Vibration	Random 2 g, 5 to 500 Hz
Shock	1 meter drop test (except the jaw)
EMI/RFI	Meets EN61326-1
	For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.
Temperature coefficient	0.01% ºC (< 18ºC or > 28ºC)
Power, battery life	(4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
Warranty	1 year
Functional Specifications
mA measurement (measured by clamp)	Resolution / range	0 to 20.99 mA
	Accuracy	0.2% + 5 counts
	Resolution / range	21.0mA to 100.0 mA
	Accuracy	1% + 5 counts
mA measurement (measured in series with test jacks)	Resolution / range	0 to 24.00 mA
	Accuracy	0.2% + 2 counts
mA source (maximum mA drive: 24 mA into 1,000 ohms)	Resolution / range	0 to 24.00 mA
	Accuracy	0.2% + 2 counts
mA simulate (maximum voltage 50 V dc)	Resolution / range	0 to 24.00 mA
	Accuracy	0.2% + 2 counts
Voltage source (2 mA maximum drive current)	Resolution / range	0 to 10.00 V DC
	Accuracy	0.2% + 2 counts
Voltage measure	Resolution / range	0 to 30.00 V DC
	Accuracy	0.2% + 2 counts
