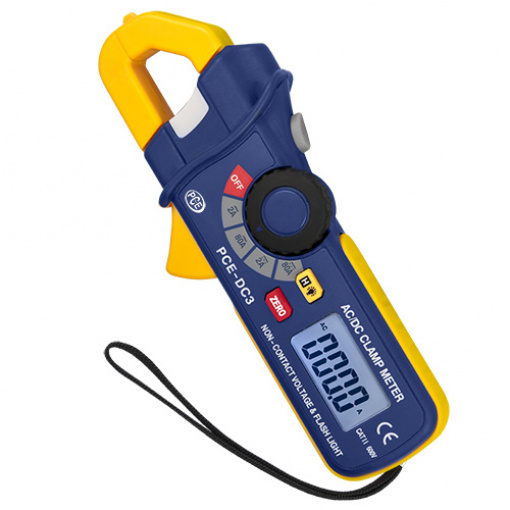

PCE-DC3 is a user-friendly digital clamp meter with automatic range selection used to measure AC/DC electrical currents with high accuracy. Combining a basic digital multimeter with a current sensor, the PCE-DC3 clamp meter features a thoughtfully integrated backlit LCD screen and built-in flashlight for illumination in dark spaces. In addition, the clamp meter’s compact size allows unique access to small and hard-to-reach places. Complete with DCA zero adjustment and non-contact voltage testing functionality, the PCE-DC3 clamp meter comes manufacturer calibrated. An optional ISO calibration certificate is available for an additional fee – see accessories tab for details.
– AC/DC current measurement up to 80 amps
– Save function
– DCA zero adjustment
– Current tester
– Integrated flashlight
– Automatic range selection
– Jaw opening of 18 mm / 0.7 in
AC current (50 / 60 Hz) | Range / Resolution / Accuracy 2 A / 1-mA / ± 2.8% + 10 dgt 80 A / 100-mA / ± 3.0% + 8 dgt |
DC current | Range / Resolution / Accuracy 2 A / 1-mA / ± 3.0% + 10 dgt 80 A / 100-mA / ± 3.0% + 8 dgt |
AC overload protection (Non-contact) | 100V AC up to 600V AC 50 / 60 Hz |
Flashlight illumination | White LED |
Conductor diameter | 18 mm / 0.7 in maximum |
Display | 3 2/3 digit LCD display with backlighting |
Power | 2 – 1.5V AAA batteries |
Casing | PVC |
Dimensions | 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in |
Weight | 175 g / < 1 lb |
Standards | EN61010-1; CAT II / 600V EN61010-2-032; CAT III / 300V |
