MicroohmMeter PCE MO 3001
meter for the smallest resistances / 0.1�μΩ resolution /�accumulator operated /
extensive LCD�/ polycarbonate ABS casing /
EN 61010-1

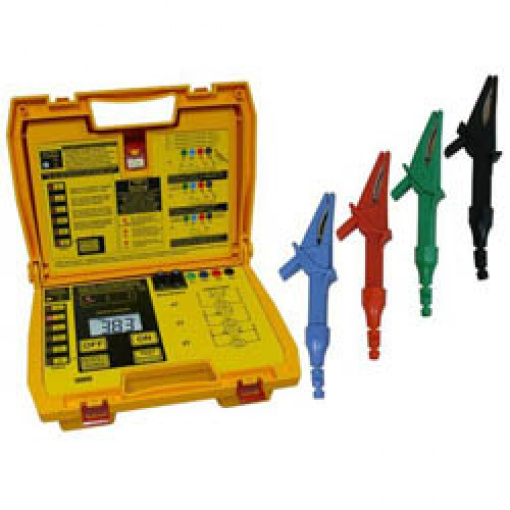

The microohm meter PCE-MO 3001 is made to measure smallest electrical resistances. It uses four test cables that can be connected to the microohm meter. The microohm meter uses two test cables and a constant current source to allow stable current to flow within the measured device. The other two test cables measure the voltage drop. Due to the fact that this microohm meter is able to measure six different measurement ranges with three different measured currents, the user has the chance to observe a wide range of current.

The microohm meter is mostly used in those fields where resistance need to be estimated. Because of the measured current which can be set up to 1 A, also the smallest resistances can be measured. The wide LCD and large buttons of this microohm meter allow a comfortable use.

– Resolution of up to 1µΩ
– Internal temperature surveillance
– Large LCD

– USB-interface
– Robust plastic case
– Internal accumulator

Technical specifications of the microohm meter
Measurement range / resolution / accuracy		2,000 mΩ / 1 µΩ / ± (5 % + 5 digits) 20,00 mΩ / 10 µΩ / ± (4 % + 4 digits) 200,0 mΩ / 100 µΩ / ± (4 % + 4 digits) 2000 mΩ / 1 mΩ / ± (3 % + 4 digits) 20,00 Ω / 10 mΩ / ± (2 % + 4 digits) 200,0 Ω / 100 mΩ / ± (2 % + 4 digits)
Test current		10 mA (200 Ω area) 100 mA (20 Ω, 2 Ω areas) 1 A (200 mΩ, 20 mΩ, 2 mΩ areas)
Test current accuracy		10 mA ±1.5 % 100 mA ±2.0 % 1 A ± 3.0 %
Max. output voltage		0 V rms
Power supply		internal accumulator
Casing		Polycarbonate, ABS
Weight	3.8 kg
Dimensions		330 x 260 x 160 mm
Norm		EN 61010-1
