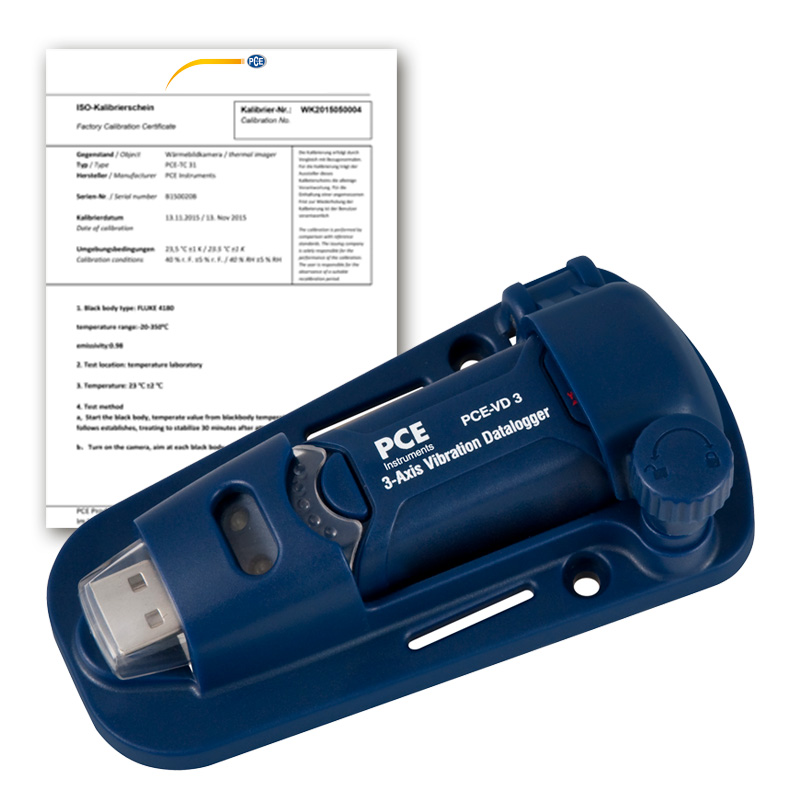

Vibration Meter PCE-VD 3-ICA incl. ISO Calibration Certificate

PCE-VD 3-ICA Vibration Meter incl. ISO Calibration Certificate
Measures 3-axis shock / Built-in accelerometer sensor / Logs and stores up to 85,764 records / Adjustable recording interval from 1 sec …. 24 hr / Connects to PC via USB port

PCE-VD 3 is a vibration meter that measures 3-axis shock/vibration via a built-in accelerometer sensor. This vibration data logger records 3-axis acceleration (X, Y, Z) vibration measurement data for Fast Fourier Transform (FFT) waveform analysis. The vibration data logger connects to your PC via a USB port for configuration and for quick and easy data transfer.

The vibration data logger can be placed almost anywhere due to its lightweight design and magnetic/wall-mounting bracket. The vibration data logger has many practical applications. It can be used for monitoring vibration during shipping, machine operation and more.

Note: The PCE-VD 3 vibration data logger must be configured with a PC before it will operate. Please follow the instructions in the user manual to program the device accordingly.

– Measures 3-axis acceleration/shock
– Logs and stores up to 85,764 data records
– Adjustable interval from 1 sec …. 24 hr
– Lightweight design
– Connects to PC via USB port
– PC software provided for configuration/data transfer
– Includes magnetic bracket with wall-mounting screws
– incl. ISO Calibration Certificate





Measurement Range	±18 g
Accuracy	± 0.5 g
Resolution	0.00625 g
Recording Interval	Adjustable from 50 ms to 24 hours
Memory	4 MB (stores up to 85,764 records)
Frequency Range	0 … 60 Hz
Interface	USB port
Operating Conditions	0 … 40 ºC / 32 ºF … 104 ºF, 10 … 90% RH
Dimensions	95 mm x 28 mm x 21 mm (3.7 in x 1.1 in x 0.8 in)
Dimensions of Bracket	106 mm x 56 mm x 33.5 mm (4.2 in x 2.2 in x 1.3 in)
Battery Indicators	2 LEDs (record in process / alarm)
Power Supply	Replaceable 3.6 V Lithium-ion battery
Software	Compatible with PC, Windows XP+ (also in 64-bit version)
Mounting	with the supplied wall bracket
