Vibration Analyzer PCE-VT 2800

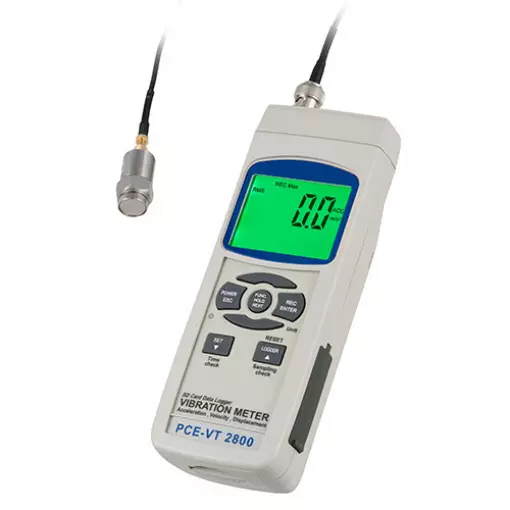

PCE-VT 2800 Vibration Analyzer
Measures acceleration, oscillation and shift / True-RMS (TRMS), max-hold, data-hold and peak-value functionality / SD memory

The PCE-VT 2800 measures acceleration, oscillation speed and shift of vibrating parts, machines and equipment. The device features an integrated data logger to record vibration measurements over time. Measurement data is stored on an SD card memory and can be transferred directly to a PC via USB or RS-232 interface.

The device also includes features such as the data hold and data release functions (accessed in RMS mode), allowing you to freeze displayed values and show maximum and minimum values respectively. The device menu offers settings such as time / date, automatic power off, beep-tone switch, sampling rate adjustment and formatting of the SD memory card.

**AC power adapter, ISO calibration certificate, and data evaluation software with USB cable sold separately. See accessories for details**

• Frequency range: 10 Hz … 1 KHz
• True-RMS (TRMS), max-hold, data-hold and peak-value functionality
• Adjustable sampling rate, automatic power off and time / date
• Power supply via battery or electric power (power adapter sold separately – see accessories)
• Backlit LCD screen
• Accommodates SD cards 1 … 16 GB
