Vibration meter for one-hand operation / Later analysis thanks to data storage / Acceleration, speed and distance measurement / Battery status display / Vibration evaluation according to ISO 10816-1 / Graphic and numerical representation

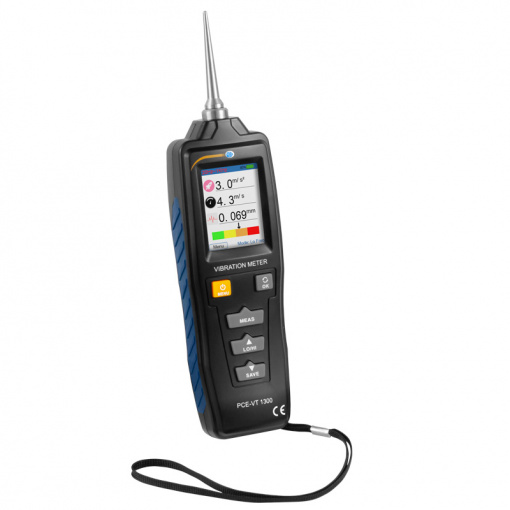

The vibration analyzer is a measuring device for one-hand operation. This is made possible by the built-in acceleration sensor in the vibration meter. So that the measured values can be read from different angles on the vibration analyzer, the display can be rotated by the vibration meter in 0, 90, 180 and 270°.
– For fast vibration measurement
– Display rotatable by 0°, 90°, 18 ° and 270°
– Data storage for later analyzes
– Carrying case included
– For mobile use
– Graphic and numerical representation
Acceleration measurement function | ||
Measuring range | Resolution | Accuracy |
0.1 … 199.9 m (655.8 ft) / s² | 0.1 m (3.9 in) / s² | < 2 m (6.6 ft) / s² < ± 10% |
> 2 m (6.6 ft) / s² < ± 5% | ||
Measuring function speed | ||
Measuring range | Resolution | Accuracy |
0.1 … 199.9 mm / s | 0.1 mm / s | < 2 mm / s < ± 10% |
> 2 mm / s < ± 5% | ||
Measuring function way | ||
Measuring range | Resolution | Accuracy |
0.001 … 1.999 mm | 0.001 mm | < 0.02 mm < ± 10% |
> 2 mm < ± 5% | ||
Sensor | Piezoelectric ceramics | |
Accelerometer (shear type) | ||
Sensor tip | 45 mm / 1.8″ needle tip | |
Frequency range acceleration | High frequency: 1 … 15 KHz (HI) | |
Low frequency: 20 Hz … 1 KHz (LO) | ||
Frequency range speed | Low frequency: 20 Hz … 1 KHz (LO) | |
Frequency range path | Low frequency: 20 Hz … 1 KHz (LO) | |
Display | 2 in LCD | |
Update rate from the display | 1 Hz | |
Maximum number of storage spaces | Approx. 100 measuring points | |
Maximum number of storage groups | 7 | |
Vibration assessment | According to ISO 10816-1 | |
Power supply | 2 x 1.5V AAA batteries | |
Environmental conditions | 0 … 40°C / 32 … 104°F, 30 … 90% RH | |
Dimensions | 180 x 54 x 30 mm / 7.1 x 2.1 x 1.2 in | |
Weight | Approx. 250 g / < 1 lb (without batteries) | |
