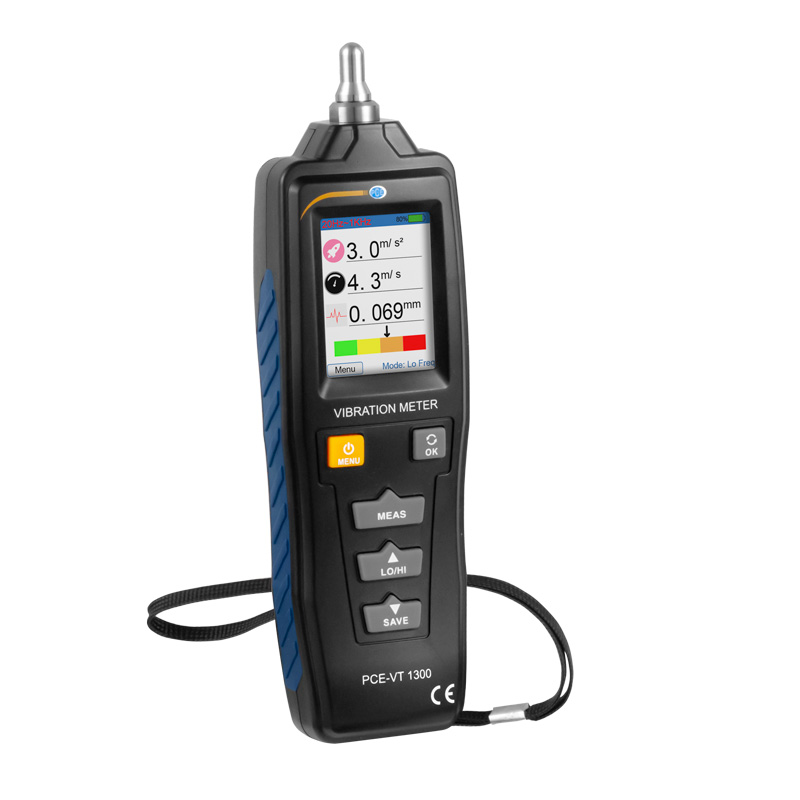

Vibration meter for one-hand operation / Later�analysis thanks to data storage / Acceleration, speed and distance measurement / Battery status display / Vibration evaluation according to ISO 10816-1 / Graphic and numerical representation
– For fast vibration measurement
– Display rotatable by 0°, 90°, 18 ° and 270°
– Data storage for later analyzes
– Carrying case included
– For mobile use
– Graphic and numerical representation
Acceleration measurement function | ||
Measuring range | Resolution � | Accuracy |
0.1 … 199.9 m (655.8 ft) / s² | 0.1 m (3.9 in) / s² | < 2 m (6.6 ft) / s² < ± 10% |
> 2 m (6.6 ft) / s² < ± 5% | ||
Measuring function speed | ||
Measuring range | Resolution | Accuracy |
0.1 … 199.9 mm / s | 0.1 mm / s | < 2 mm / s < ± 10% |
> 2 mm / s < ± 5% | ||
Measuring function way | ||
Measuring range | Resolution | Accuracy |
0.001 … 1.999 mm | 0.001 mm | < 0.02 mm < ± 10% |
> 2 mm < ± 5% | ||
Sensor | Piezoelectric ceramics | |
Accelerometer (shear type) | ||
Sensor tip | 10 mm / 0.4 in attachment | |
Frequency range�acceleration | High frequency: 1 … 15 KHz (HI) | |
Low frequency: 20 Hz … 1 KHz (LO) | ||
Frequency range�speed | Low frequency: 20 Hz … 1 KHz (LO) | |
Frequency range�path | Low frequency: 20 Hz … 1 KHz (LO) | |
Display | 2 in LCD | |
Update rate from the display | 1 Hz | |
Maximum number of storage spaces � | Approx. 100 measuring points | |
Maximum number of storage groups � | 7 | |
Vibration assessment | According to ISO 10816-1 | |
Power supply | 2 x 1.5V AAA batteries | |
Environmental conditions | 0 … 40°C / 32 … 104°F, 30 … 90% RH | |
Dimensions | 180 x 54 x 30 mm / 7.1 x 2.1 x 1.2 in | |
Weight | Approx. 250 g / < 1 lb (without batteries) | |
