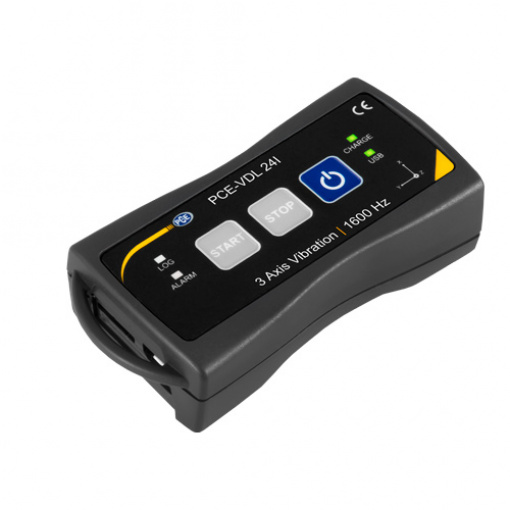

Vibration Analyzer PCE-VDL 24I
with up to 1600 Hz

The vibration analyzers of the PCE-VDL series are available in two versions. The vibration analyzer PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The PCE-VDL 24I has 3-axis acceleration and the max. sampling rate of the acceleration sensor is 1600 Hz.

With the vibration analyzer PCE-VDL 24I the acceleration sensor is even delivered with a sampling rate of 1600 Hz. The shock and vibration logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.

– 3- Axis acceleration up to 1600 Hz

– 32 GB SD memory card

– Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in

– Made in Germany

3-Axis Acceleration Measured Variable
Measuring range	±16 g
Accuracy	±0.24 g
Measurement / storage rate	1600 Hz … 1 Hz

General Technical Data of the 3-Axis Accelerometer
Storage capacity	2.5 million measured values per measurement, 3.2 billion measured values with the enclosed 32 GB microSD memory card
Button	Start / stop of a measurement; On or off switch of the data logger
LED	Log: operating status Alarm: alarm display Charge: charge level indicator USB: Status of the connection to the PC
Power supply	Integrated Li-Ion battery 3.7 V / 500 mAh The battery is charged via the USB port
Integrated sensors	3-axis acceleration
Interface	USB
PC Software	Free setup and evaluation software (Windows XP / Vista / 7/8/10 32-bit / 64-bit) for recording and evaluating the data.
Operating conditions	Temperature -20 … +65 °C
Storage conditions	Temperature +5 … +45 °C (ideal storage conditions for battery) 10 … 95% relative humidity, not condensing
Standards	The PCE-VDL 24I complies with the EU RoHS / WEEE directive.
Weight	ca. 60 g
Dimensions (L x W x H)	87 x 44 x 23 mm
