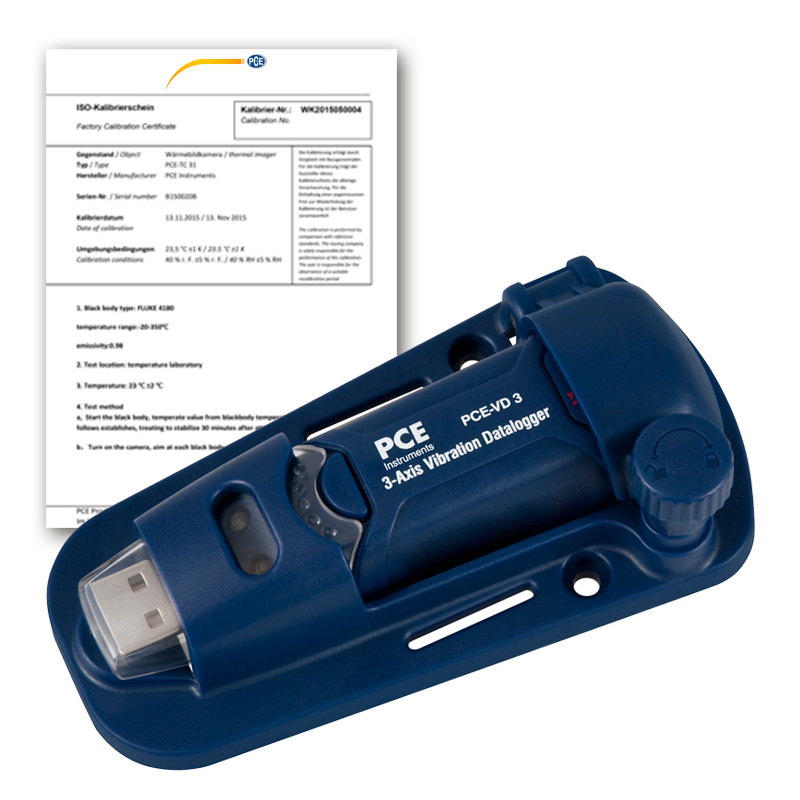

Vibration Analyzer PCE-VD 3-ICA incl. ISO Calibration Certificate

PCE-VD 3-ICA Vibration�Analyzer incl. ISO Calibration Certificate
Measures 3-axis shock / Built-in accelerometer sensor / Logs and stores up to 85,764 records / Adjustable recording interval from 1 sec …. 24 hr / Connects to PC via USB port

PCE-VD 3 is a vibration analyzer that measures 3-axis shock/vibration via a built-in accelerometer sensor. This vibration data logger records 3-axis acceleration (X, Y, Z) vibration measurement data for Fast Fourier Transform (FFT) waveform analysis. The vibration data logger connects to your PC via a USB port for configuration and for quick and easy data transfer.

The vibration data logger can be placed almost anywhere due to its lightweight design and magnetic/wall-mounting bracket. The vibration data logger has many practical applications. It can be used for monitoring vibration during shipping, machine operation and more.

Note: The PCE-VD 3 vibration data logger must be configured with a PC before it will operate. Please follow the instructions in the user manual to program the device accordingly.

– Measures 3-axis acceleration/shock
– Logs and stores up to 85,764 data records
– Adjustable interval from 1 sec …. 24 hr
– Lightweight design
– Connects to PC via USB port
– PC software provided for configuration/data transfer
– Includes magnetic bracket with wall-mounting screws
– incl. ISO Calibration Certificate
