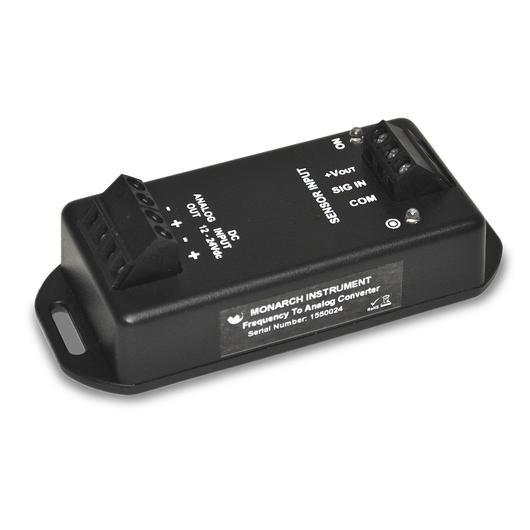

F2A1X Frequency to Analog Converter/Tachometer

Description

The F2A1X Frequency to Analog module converts a frequency input signal into a proportional analog voltage (0-5VDC) or current (4-20mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A1X is factory pre-programmed with the full-scale output and input scale factor of your choice. These settings are also user-configurable with the optional USB Programming Cable and downloadable PM Remote Software. The PM Remote Software also displays data in real-time and allows data to be recorded to your PC in .csv format. The F2A1X requires 12-24VDC input power.

TYPICAL USES

• Process monitoring
• Tachometer signal generator
• QC and R&D
• Engine performance
• Signal conditioning
• Data acquisition
• Motor or pump monitoring

Features

All models – Universal Input, non-contact operation from optical, infrared, laser, proximity, and magnetic sensors or direct TTL and 200mV to 50 Vac signals

• Economically priced
• Compact, rugged and lightweight construction
• Electrically isolated input/output
• Compatible with most speed sensors
• 12 to 24VDC input power
• User-configurable*
• View real-time data on PC with free downloadable PM Remote Software*
• Store data in .csv format in real-time*
• 4-20mA or 0-5VDC scalable output
• 5VDC or 10VDC sensor supply (jumper selectable)

*Requires optional USB Programming Cable
