ACT-3X Panel Tachometer

หมวดหมู่: Tachometer

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Description

The ACT-3X Panel Tachometer is a powerful NIST calibrated, fully programmable tachometer and totalizer. It accepts inputs from all Monarch speed sensors or from any standard TTL generating device. The unit operates from 120/240Vac input power or from 12 or 24VDC input power (optional). Programming is easily performed through the 5 front panel pushbuttons or using the free downloadable PM Remote Software. Set up for single-channel monitoring. Programmable scale factor with menu selection for multiple pulses per revolution, linear rates, single event trip speeds (using auxiliary input), and rate of change in RPMrpm. A TTL pulse repeater output is standard. Recommended sensors with PN -W (= tinned leads), ROS-W, ROS-HT-W-25, P5-11, PS-12, M-190W, IRS-W, ROLS-W , RLS-W, SLS-115/230, CSLS, and GE-200HP Gas Engine Sensor (with amplifier).

Features

All models – Universal Input, non-contact operation from optical, infrared, laser, proximity, and magnetic sensors or direct TTL and 200mV to 50 Vac signals

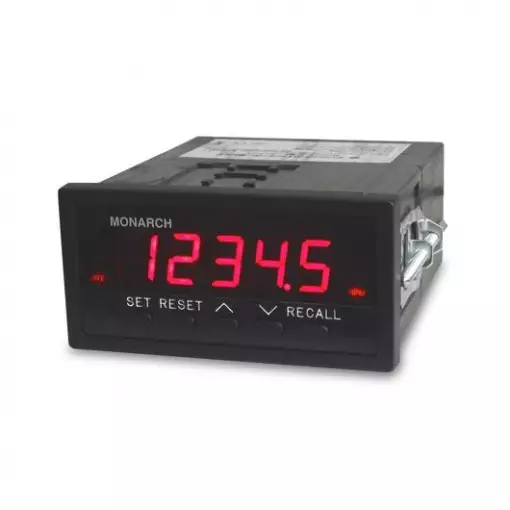

ACT-3X Panel Tachometer

1/8 DIN sized
5-digit LED display
5 to 999,990 RPM range
Universal sensor inputs
NIST Traceable Certificate of Calibration included
User-configurable with front panel pushbuttons or free downloadable PM Remote Software
View real-time data on PC*
Record data in .CSV format in real-time*
Universal A/C power 100 to 240 Vac, 50/60Hz or optional 12 or 24VDC power
Standard pulse repeater output
Single event capture from start-stop pulses, in units such as MPH, CM/sec, etc. using two sensors – for the linear rate of travel on the second input channel
Optional 4-20mA or 0-5VDC scalable output
Optional Ethernet or USB communications
Optional alarm relay outputs

*If no communications option is ordered, requires USB programming cable and PM Remote Software (free download)

Specifications*


Speed Range	5 to 999,990 RPM (single pulse per revolution), 0.5 to 999,990 RPM (10 pulses per revolution); speeds below 5 RPM are possible with multiple pulses per revolution
Input Frequency Range	0.083 Hz to 80 kHz
Totalizer/Counter	Display range: 0.001 to 99,999 (Only top 5 digits are shown for 100,000-999,990) max # of counts = 16,777,216 even with 0.001 scale
Input Configuration	Universal inputs: 1 to 9,999 pulses per revolution front panel push-button programmable TTL input and 1.1V to 50vac signals, Opt: -1 to -50VDC
Accuracy	+/-0.001% of reading or +/-1 displayed resolution (Standard Gate), +/-0.06% of reading or +/-1 displayed resolution (Fast Gate)
Resolution	Up to 0.001 RPM, 10 RPM [100,000 to 999,990 RPM]
Display	5-digit, 0.56″ [14 mm] high red LED
Display Update	Menu selectable between 0.5 seconds above 120 RPM, 1 second above 60 RPM, and 1.5 seconds above 40 RPM
Max Measurement Rate	Up to 100 times per second (Standard Gate) or up to 1000 (Fast Gate) dependent on the input frequency; input must be measurement rate
Scaling	Programmable scaling: 0.0001 to 9999.9 (front panel push-button programmable)
Decimal Point	User Selectable (0-3) decimal places max (front panel push-button programmable)
Memory	Maximum, minimum, and last reading recall from front panel pushbuttons
Dimensions	1/8 DIN by 4.5″ [114 mm] deep Panel cutout: 3.58″ x 1.74″ [91 x 44 mm]
Input Power	Standard: 100 – 240 Vac +/-10%, 50/60 Hz Optional: 12 or 24VDC +/-20%, isolated, 8VA
Inputs	Universal input for optical, proximity, two-wire or three-wire magnetic, infrared, or laser sensors; TTL input or 3.3 Vac to 50 Vac input (The standard input is 1 pulse per revolution.)
Sensor Excitation	5VDC or optional 12VDC or 24VDC to sensor
Recommended Sensors	LED – ROS-W High Temp – ROS-HT-W-25 Proximity – P5-11, PS-12 Magnetic – M-190W or MT-190W Infrared – IRS-W Laser – ROLS-W, RLS-W, SLS-115/230, CSLS Inductive – GE200-HP Gas Engine (requires amplifier)
Pulse Repeater Output	Standard, 0 to 5 V TTL compatible; one pulse out for each pulse in Menu selectable polarity
Communications	Bidirectional RS232C, USB, or Ethernet interface
Analog Output�(optional)	Voltage (AO): 0 to 5 VDC, 5mA max load (isolated or non-isolated) or Current (IO): 4 to 20mA, 500 ohm,¦ max load. (or non-isolated), 1 to 5VDC possible using 250 ohm resistor) 16-bit resolution Front panel push-button programmable for full scale and offset RPM ranges
Pulse Output�(optional)	Repeater pulse output: TTL pulse switching between +5V and ground
Alarm Capability	Two-alarm set-points: high or low alarm limits, latching or non-latching Front panel push-button programmable Hysteresis, dead band, and low limit lockout are programmable; relays can be set as a fail-safe Alarms can be reset manually or automatically; remote reset via the auxiliary input
Alarm Outputs	Two Form C relay contacts, rated 1A at 115Vac or 230Vac
Remote Programming	Remote programming possible using an optional communications interface and PM Remote Software (If no communications are ordered, the unit can still be programmed with an optional USB programming cable.)
Environmental	Indoor use only, installation category II per IEC 664 temperature: -10 degrees C to 50 degrees C operating per IEC 61010-1 Humidity: maximum relative humidity 80% for temperatures up to 31 degrees C, decreasing linearly to 50% relative humidity at 40 degrees C
Electrical Safety:	Meets EN61010-1:2001, EC low voltage directive 72/23/EEC and 89/336/EEC
