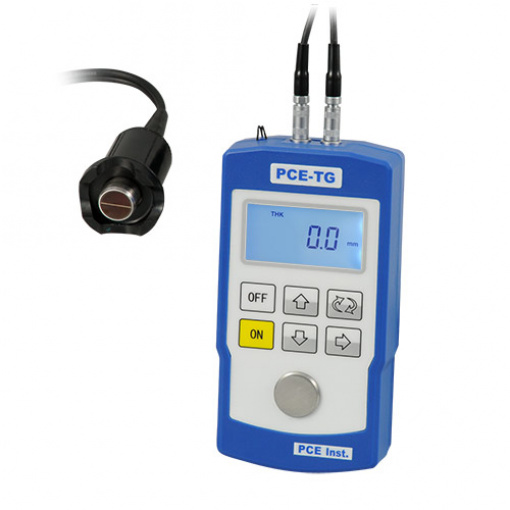

This is a compact wall thickness meter for homogeneous materials. This wall thickness meter works with an external ultrasonic probe; this probe conducts ultrasonic waves into the material to be tested. Different materials conduct ultrasound at different speeds, so you can choose different ultrasonic speeds on the wall thickness meter. The step size is 1 m/s with a setting range of 500 to 9999 m/s. The meter is factory pre-set with five different sound speeds for different material.
With the wall thickness meter, you can determine the material thicknesses of metal, glass, plastics and other homogeneous materials in seconds. Operation of the wall thickness meter is very easy via the six buttons. The ultrasound probe has a measuring head, which is fitted in a resilient black spring washer. The spring ring in turn has round cutouts, so that a measurement on straight, even or round material surfaces is possible. The wall thickness meter is delivered calibrated. As an accessory, you can order an ISO laboratory calibration including certificate at the time of initial order or recalibration.
– Suitable for metals, glass, plastics
– 5 MHz probe
– Resolution 0.1 mm
– 4-digit LCD display, mm only display
– Up to 225 mm (8.8″) material thickness
– Battery status indicator
– Automatic calibration
– Integrated 3.0 mm (0.11″) calibration block
