Light Meter LXT-TRM

Name: Light Meter LXT-TRM
SKU: 15090
Availability: BackOrder

LXT-TRM

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: เครื่องวัดแสง

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

LXT-TRM Light Meter

Fixed-mount light meter with 4-20-mA analog output and control relay / 0 … 50,000 lux measuring range / Includes light sensor wall-mounting bracket

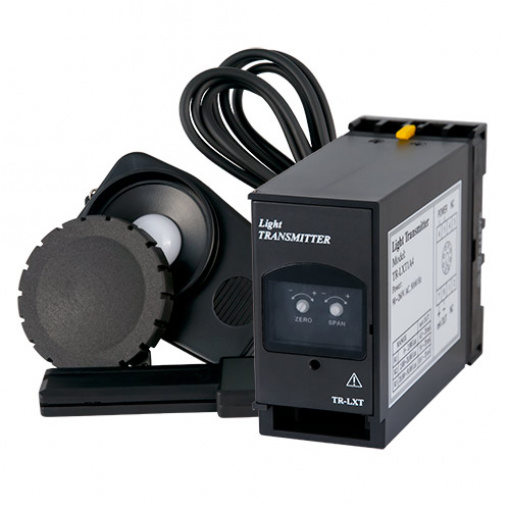

LXT-TRM is a fixed-mount light meter consisting of a transmitter unit and an external light sensor probe with a 1.5 m / 4.9 ft long cable and wall-mounting bracket. This light meter allows for the continuous monitoring of light exposure in the workplace. Ideal for use in photography laboratories and production facilities manufacturing light-sensitive food and medical products, the light meter can be used to control an alarm (not included) or to save the signals from the transmitter to a data logger (not included) for documentation and review.

– Measuring range: 0 … 50,000 lux (lx) in three ranges
– Resolution: 0.1 lx / 1 lx depending on range
– Accuracy: ± 5% of reading
– 4 to 20-mA analog output and control relay

Light Meter sensor
Measurement Range	0 … 50,000 lux en three ranges
Resolution	0.1 lx / 1 lx
Accuracy	± 5% of reading ± 10 digits (<10,000 lux) ± 10% of reading ± 10 digits (>10,000 lux)
Repeatability	± 5%
Sensor	Photodiode with color correction filter according to CIE
Power supply	By the transmitter of the light transducer
Cable length (from the sensor transmitter to the light transducer)	1.5 m / 4.9 ft
Environmental conditions	Maximum 80% H. r. / 0 … 50°C / 32 … 122°F
Housing material	ABS plastic
Transmitter of the�Light Meter
Housing	ABS plastic
Power supply	90 … 260 ACV
Calibration	Adjustable with slave screw of the light transducer
Output	4 … 20-mA
Protection type	IP 54
Environmental conditions for the light transducer	Maximum 85% R.H. / 0 … 50°C / 32 … 122°F
