Infrared Thermometer PCE-TC 30N

Infrared Thermometer PCE-TC 30N

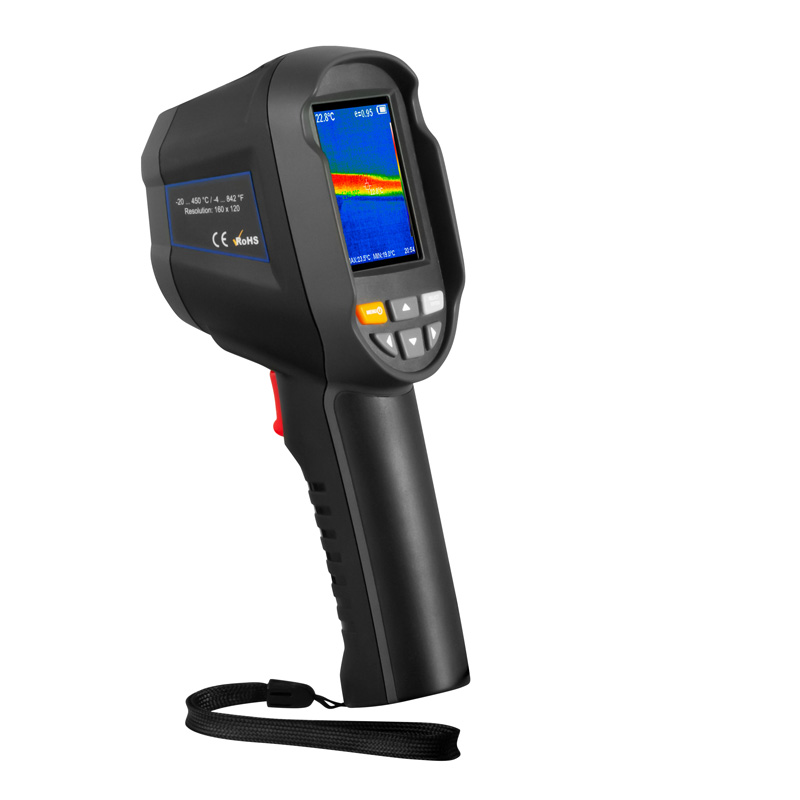

The PCE-TC 30N thermal imaging camera for preventive maintenance is the ideal tool for preventative maintenance. This thermal imaging camera is a must-have for electricians, fitters, or general maintenance personnel for trouble shooting and fault prevention on electrical equipment, electromechanical equipment, production process machinery, heating, ventilation, and air conditioning systems, especially when working in harsh environments. The operator can use the PCE-TC 30N high-resolution thermal imaging camera for preventive maintenance, to detect evolving faults on machinery and equipment. The preventive maintenance and service is thus made easy.

The thermal imaging camera PCE-TC 30N was designed in ergonomic design for one-hand operation. Due to the very low weight of 389 g, it is ideal for analyzing machines and systems. In operational maintenance and servicing, this thermal imaging camera is used, for example, for the optical monitoring of bearings and bearing housings, heat exchangers, steam separators, … or for checking electrical installations. The PCE-TC 30N Thermal Imager, with a sensitivity of less than 0.1°C / 0.18°F, offers a maximum accuracy of ± 2°C / 3.6°F or ± 2% in a temperature range of -20 … 300°C / -4 … 572°F. On the color display of this thermal imager there is the possibility to automatically find and display the warmest and coldest measuring point in the measurement image. The built-in LED allows a better location of sources of error in the dark. With the powerful features, machine irregularities are instantly recognized and appropriate action can be taken on the spot to prevent it. The stored thermal image recordings can be transmitted to a PC or laptop using the corresponding connection cable.
