HI96771C CHLORINE FREE ULTRA HIGH RANGE TO 500 MG/L – PHOTOMETER WITH CAL KIT & CASING

Product information “HI96771C Chlorine Free Ultra High Range to 500 mg/l – Photometer with Cal kit & Casing”

HI 96771 has been developed to check chlorine dosing in disinfection processes with ultra high concentrations of chlorine. Thanks to the extended range from 0 to 500 mg/L (ppm), it is ideal for the food industry, such as in fruit and vegetable washing.

The HI 96771 meter measures the free chlorine (Cl₂) from 0- 5 ppm content in water  nd total chlorine in the ultra high range 0-500 ppm. The methods are an adaptation of Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-Cl.

The meter uses an exclusive positive-locking system to ensure that the cuvette is in the same position every time it is placed into the measurement cell. It is designed to fit a cuvette with a larger neck making it easier to add both sample and reagents. The cuvette is made from special optical glass to obtain best results.

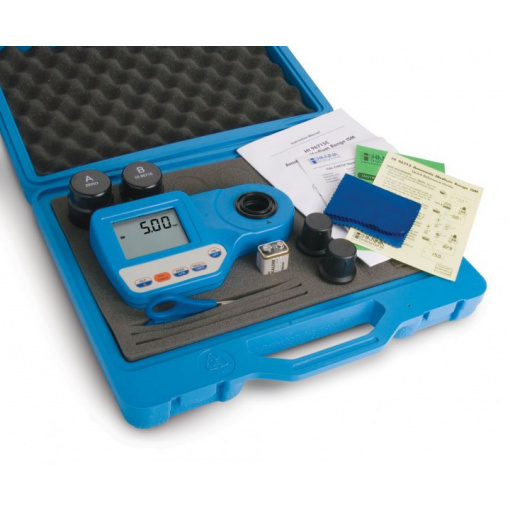

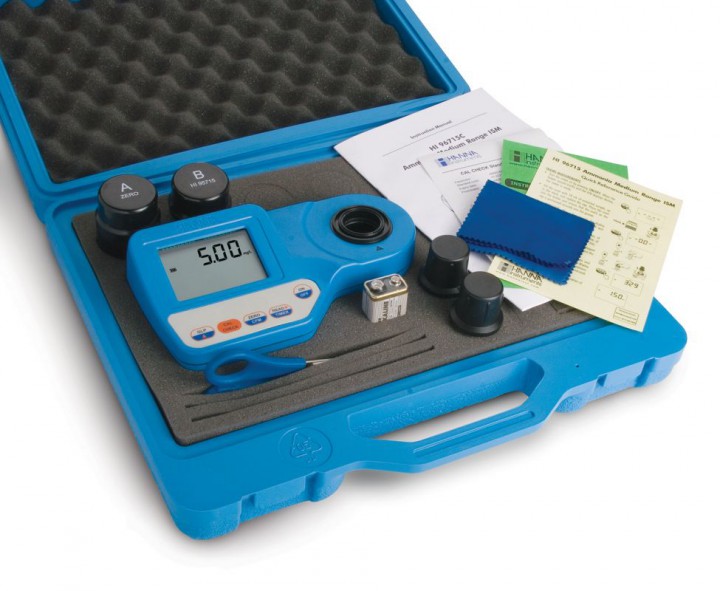

Order Information: HI 96771C includes HI 96771 photometer, sample cuvettes with caps (2 ea.), 9V battery, scissors, cloth for wiping cuvettes, instrument quality certificate, instruction manual and rigid carrying case.

  Manual: DOWNLOAD

Specification :

Range		Free Chlorine: 0.00 to 5.00 mg/L Chlorine UHR: 0 to 500 mg/L
Resolution		Free Chlorine: 0.01 mg/L from 0.00 to 3.50 mg/L; 0.10 mg/L above 3.50 mg/L; Chlorine UHR: 1 mg/L from 0 to 200 mg/L; 10 mg/L above 200 mg/L
Accuracy		Free Chlorine: ±0.03 mg/L ±3% of reading @ 25°C; Chlorine UHR: ±3 mg/L ±3% of reading @ 25°C
Light Source		Tungsten lamp
Light Detector		silicon photocell with narrow band interference filter @ 466 nm
Power Supply		9V battery
Auto-off		After 10 minutes of non-use in measurement mode; After 1 hour of non-use in calibration mode; with last reading reminder.
Environment		0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions		192 x 104 x 69 mm (7.6 x 4.1 x 2.7″)
Weight		360 g (12.7 oz.)
Method		Adaptation of Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-Cl.
